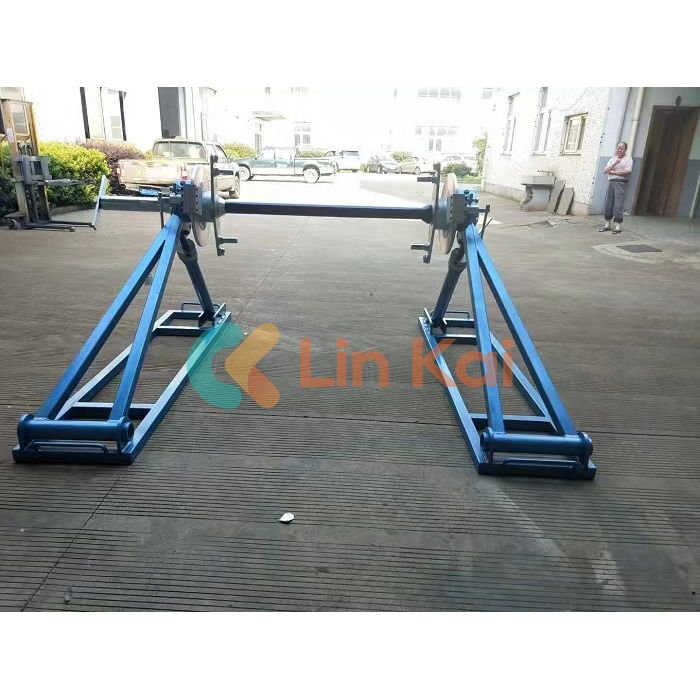

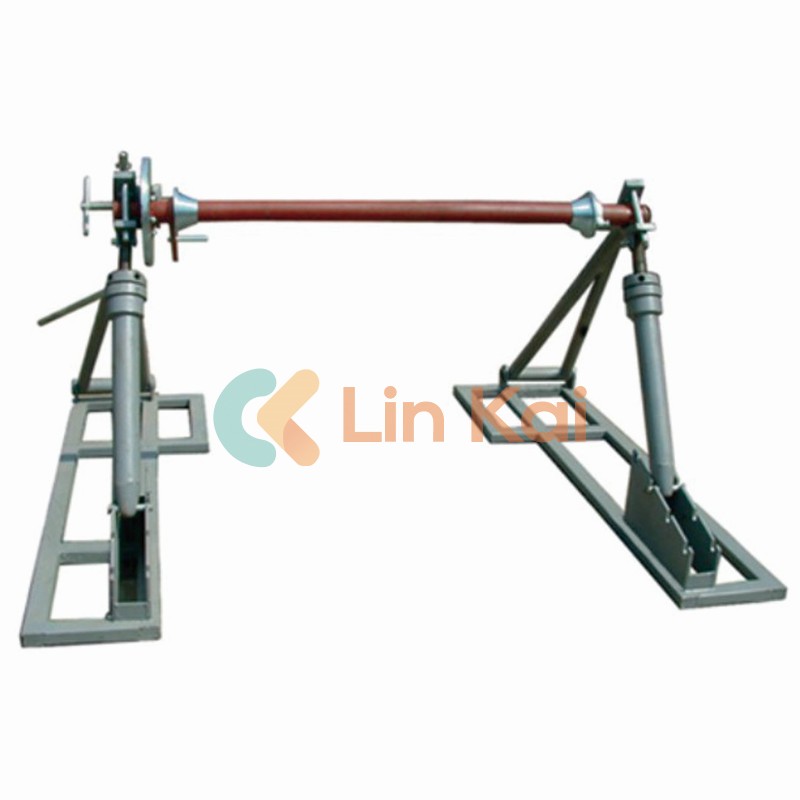

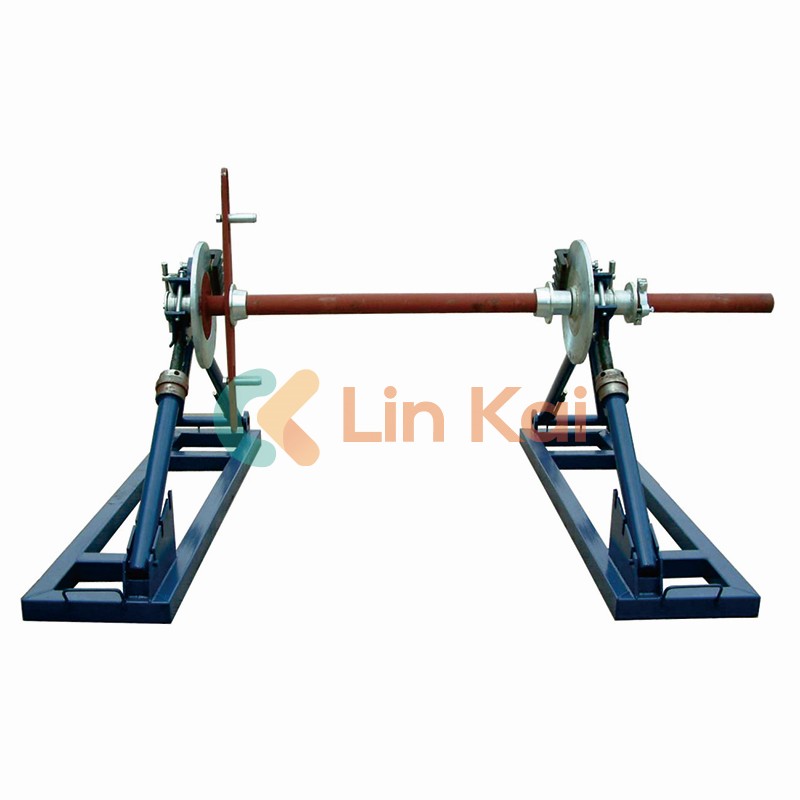

At the Ningbo Lingkai facility in China, integrated reel stands are manufactured. These are brake reel stands with disc tension. When used for mechanical traction wire laying or tension stringing, it may sustain the reel. Reels may be braked using integrated reel supports as well. This device has three components that may be separated for convenient traveling. Our SIPZ-7-type product has a double-disc braking construction built into it.
Detachable type drum brakes spiral rise machinery wire rope reel support conductor in overhead line stringing construction site. Data sheet of Integrated Reel Stands as below.
|
Item Number |
15141 |
15142 |
15143 |
|
|
Model |
SIPZ3A |
SIPZ5A |
SIPZ-7 |
|
|
Applicable Reel |
Diameter of Coil (mm) |
Φ900~1600 |
Φ1600~2400 |
Φ1800~2500 |
|
Width of Coil (mm) |
≤1350 |
≤1350 |
≤1700 |
|
|
Diameter of Axle Hole (mm) |
Φ65-100 |
Φ65-100 |
Φ120 |
|
|
Maximum Weight (kg) |
3000 |
5000 |
7000 |
|
|
Braking Torque (N·m) |
1000 |
1000 |
2000 |
|
|
Pay-off Speed (m/min) |
80 |
80 |
80 |
|
|
Weight (kg) |
200 |
215 |
480 |
|
We also manufacture the Large Capacity Hydraulic Conductor Reel Stands. it is connecting the hydraulic tension and hydraulic puller through the quick coupling.
|
Item number |
15155 |
15158 |
|
|
Model |
SIYZ10 |
SIYZ15 |
|
|
Applicable reel |
Diameter of coil (mm) |
Φ2000～3000 |
Φ2000～2800 |
|
Max width of coil (mm) |
1700 |
1950 |
|
|
Diameter of axle hole (mm) |
Φ125-130 |
||
|
Maximum weight (kg) |
10000 |
15000 |
|
|
Max working torque (N.m) |
3300 |
4500 |
|
|
Max Speed (rpm) |
45 |
45 |
|
|
Axle diameter |
Φ94 |
Φ119 |
|
|
Weight (kg) |
597 |
789 |
|
|
Length of hydraulic tube |
15 |
20 |
|
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling
