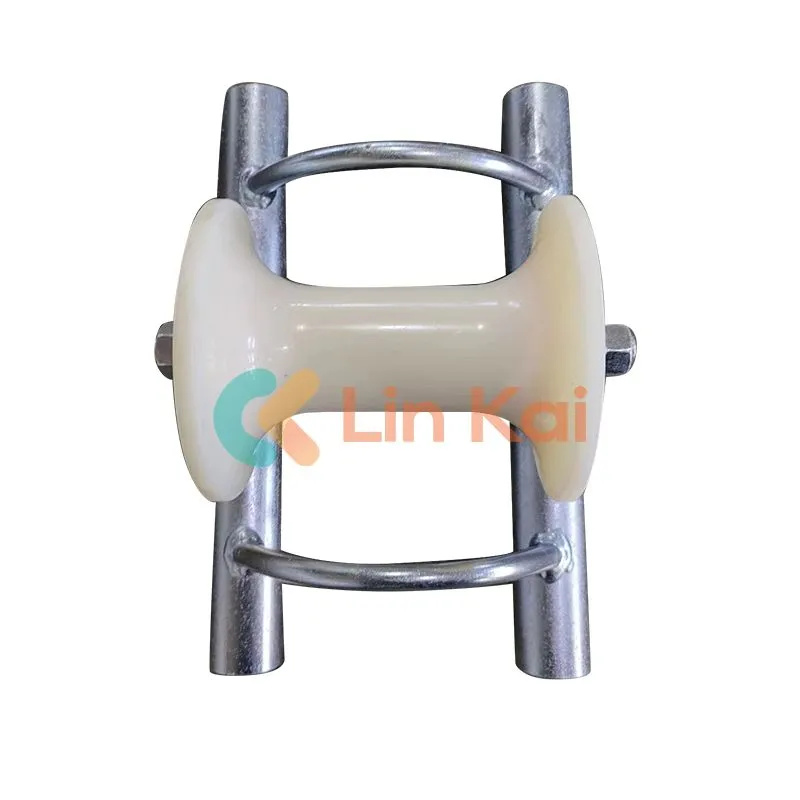

China Nylon wheel cable ground roller for Guiding and Supporting Cables
Nylon wheel cable ground roller one year warranty made in China Ningbo Lingkai Factory plays a crucial role in guiding and supporting cables in a cable system. Typically installed at the bends of cable lines, Nylon wheel cable ground rollers help ensure that cables follow the intended path and avoid sagging or twisting from external factors.
In any cable system, cables pass through numerous points, and Nylon wheel cable ground rollers are essential for maintaining cable stability and preventing possible damage due to the weight of the cables themselves or external environmental factors.
In addition to preventing cable damage, the use of Nylon wheel cable ground roller for guiding and supporting cables also prevents potential accidents that could be caused by cables slipping or coming out of place. cable laying rollers work by providing a smooth path that allows the cables to move along their intended route in a reliable and secure manner.
|
Item No. |
Model |
Working load (KN) |
Diameter of Cable |
Construction of Cable Roller |
Weight (kg) |
|
21171 |
SHL1 |
10 |
Φ150 |
Casting Aluminum Frame Aluminum Roller |
5.4 |
|
21172 |
SHL1N |
10 |
Φ150 |
Casting Aluminum Frame Nylon Roller |
3.6 |
|
21181 |
SHL1B |
10 |
Φ160 |
Steel Plate Base Aluminum Roller |
5.5 |
|
21182 |
SHL1BN |
10 |
Φ150 |
Steel Plate Base Nylon Roller |
3.7 |
|
21183 |
SHL2BN |
10 |
Φ160 |
5.5 |
|
|
21184 |
SHL3BN |
10 |
Φ200 |
8.0 |
|
|
21191 |
SHL1G |
10 |
Φ150 |
Steel Tubing Frame Aluminum Roller |
5.1 |
|
21192 |
SHL1GN |
10 |
Φ150 |
Steel Tubing Frame Nylon Roller |
3.3 |
|
21193 |
SHL2GN |
10 |
Φ160 |
5.7 |
|
|
21194 |
SHL3GN |
10 |
Φ200 |
8.0 |
|
|
21201 |
SHLG1 |
10 |
Φ150 |
Steel Tubing Long Legs Aluminum Roller |
9.4 |
|
21202 |
SHLG1N |
10 |
Φ150 |
Steel Tubing Long Legs Nylon Roller |
7.8 |
Note: The Nylon wheel cable ground rollers are used for installation different underground power cable up to diameter Ø200mm, please choose the suitable roller according to your cable size.
All the sheaves are mounted on bearings. The frame is made of galvanized steel.
|
Item No. |
Model |
Working load (KN) |
Size of Cables (mm) |
Weight (kg) |
|
21211 |
SHL |
8 |
≤ Ø80 |
5.5 |
|
21221 |
SHL2 |
10 |
≤ Ø150 |
12 |
|
21222 |
SHL2N |
10 |
≤ Ø150 |
10 |
|
21223 |
SHL3 |
10 |
≤ Ø150 |
11 |
|
21224 |
SHL3N |
10 |
≤ Ø150 |
9 |
Application: Cable Corner Rollers are used for installation power cable on corner of trench.
