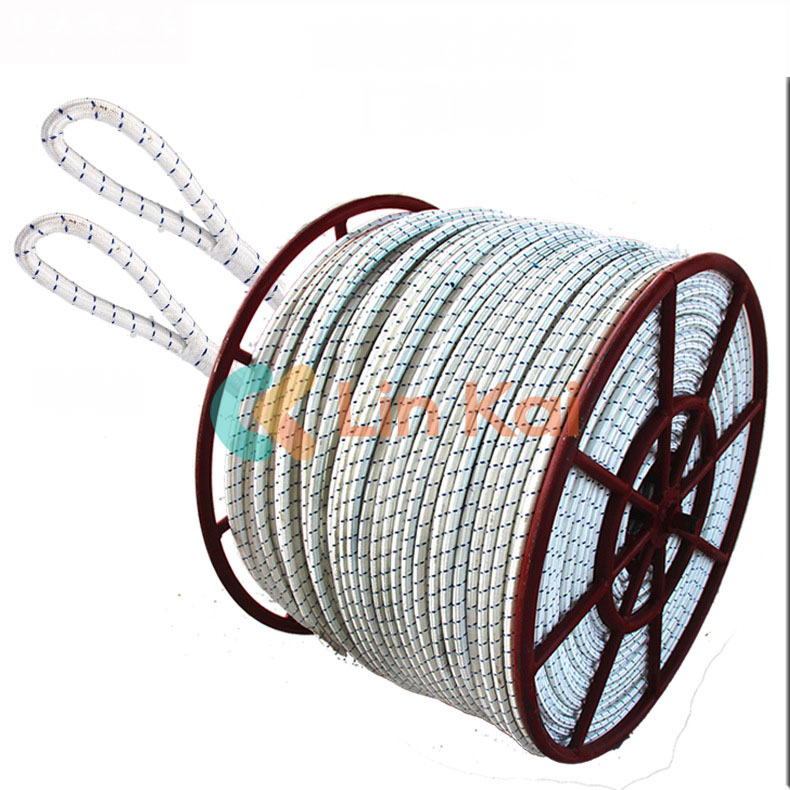

Dyneema Rope and High Strength Dupont Rope is the Pilot rope for stringing conductors on overhead transmission line Made in China, which is made from ultra-high molecular weight polyethylene fiber, which is known for its high strength.
Quality Pilot rope for stringing conductors on overhead transmission line is specially braided to increase its tensile strength and durability. Additionally, it is covered with a protective polyester layer that shields it from damage due to environmental factors such as abrasion, UV rays, and chemicals.
This type of Pilot rope for stringing conductors on overhead transmission line 1 Years Warranty is commonly used for overhead transmission line conductor or Optical Ground Wire (OPGW) stringing. Its remarkable strength-to-weight ratio makes it ideal for this application as it can handle the load without being excessively heavy.
The High Strength Durable Pilot rope for stringing conductors on overhead transmission line is an excellent alternative to Dyneema rope for stringing applications that do not require excessive loads or working at high temperatures. It is resistant to water, mildew, and chemicals, making it suitable for use in a variety of environments.
|
Item No. |
Nominal diameter (mm) |
Breaking Load (KN) |
Diameter after covering Polyester (mm) |
Net Weight (kg/1000m) |
Weight After Covering (kg/1000m) |
|
18170A |
2 |
4.3 |
3 |
2.70 |
4.8 |
|
18170B |
3 |
8.5 |
4.5 |
4.65 |
9.6 |
|
18170D |
4 |
16.6 |
5.5 |
9.31 |
13.5 |
|
18170F |
5 |
24.4 |
7 |
14 |
20 |
|
18170G |
6 |
31.9 |
8 |
20 |
28.2 |
|
18170H |
7 |
43.6 |
9 |
27 |
36 |
|
18170J |
8 |
58.8 |
10 |
35 |
48.4 |
|
18170K |
9 |
70.3 |
11 |
42 |
58.5 |
|
18170L |
10 |
92.5 |
12 |
56 |
77 |
|
18170M |
11 |
115 |
13 |
70 |
97 |
|
18170N |
12 |
137 |
14 |
84 |
113.4 |
|
18170P |
13 |
159 |
15 |
98 |
132 |
|
18170Q |
14 |
180 |
16 |
106 |
150 |
|
18170R |
16 |
211 |
18 |
132 |
177 |
|
18170S |
18 |
296 |
21 |
186 |
247.3 |
