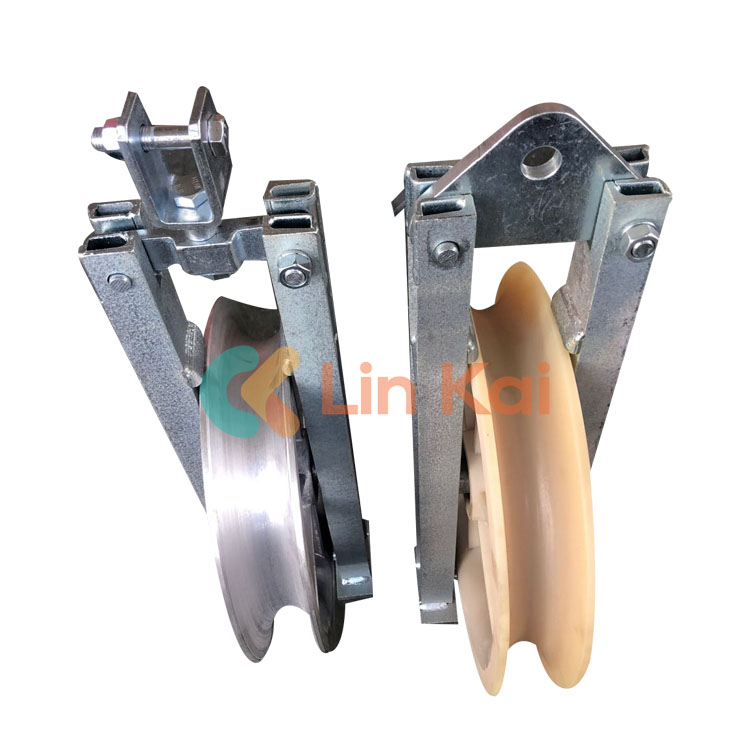

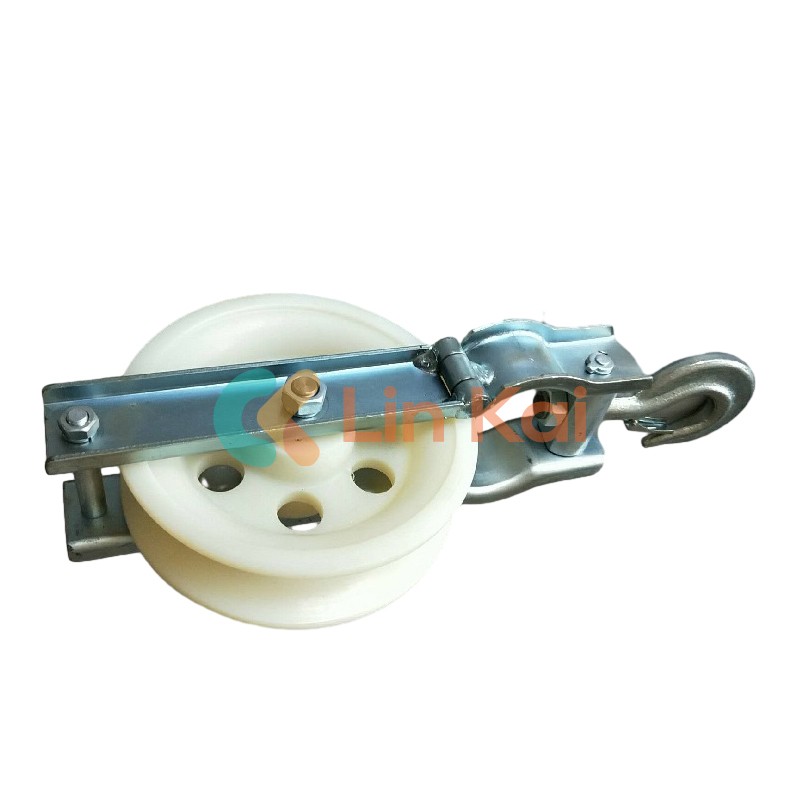

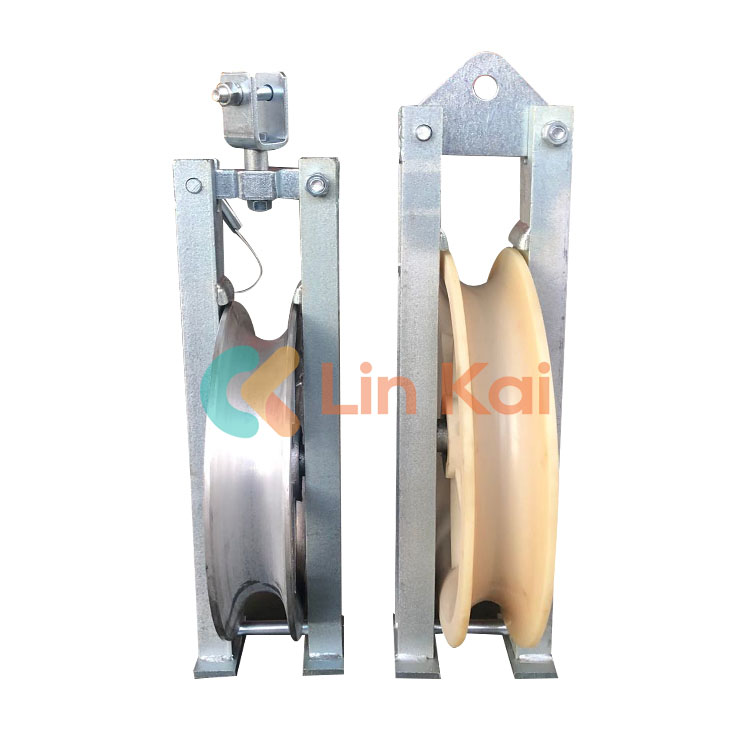

Ningbo Lingkai's bulk single sheave pulley blocks are divided into hook, clevis, and other types. The specified type must be clearly indicated in the order form. All these pulleys can be opened and locked. These single sheave pulley blocks we made are the top MC imported USA raw material, which is 96% pure, and the steel frame is 8# steel.
The durable stringing pulley blocks are suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission lines. The wheel groove can be filled with clamp pipe, aluminum tube, connector, etc.
We can tailor the product to meet your individual needs. The model data in the table is based on the sheave's outer diameter and width (in millimeters).
|
Item Number |
Model |
Suitable Conductor |
Rated Load (kg) |
Weight (kg) |
Remark |
|
10171 |
SHD-120×30 |
LGJ25~70 |
5 |
1.5 |
Aluminum sheave |
|
10172 |
SHD-160×40 |
LGJ95~120 |
10 |
2.5 |
|
|
10173 |
SHD-200×40 |
LGJ150~240 |
15 |
4 |
|
|
10174 |
SHD-200×60 |
LGJ150~240 |
15 |
4.6 |
|
|
10176 |
SHD-250×60 |
LGJ300~400 |
20 |
6 |
|
|
10178 |
SHD-320×60 |
LGJ300~400 |
20 |
9.5 |
|
|
10179 |
SHD-400×80 |
LGJ400~500 |
20 |
15 |
|
|
10191 |
SHDN-120×30 |
LGJ25~70 |
5 |
1.5 |
Nylon sheave |
|
10192 |
SHDN-160×40 |
LGJ95~120 |
10 |
2.5 |
|
|
10193 |
SHDN-200×40 |
LGJ150~240 |
15 |
3.6 |
|
|
10194 |
SHDN-200×60 |
LGJ150~240 |
15 |
4 |
|
|
10196 |
SHDN-250×60 |
LGJ300~400 |
20 |
4.5 |
|
|
10197 |
SHDN-270×60 |
LGJ300~400 |
20 |
5.6 |
|
|
10198 |
SHDN-320×60 |
LGJ300~400 |
20 |
6.7 |
|
|
10199 |
SHDN-400×80 |
LGJ400~500 |
20 |
13 |
The maximum appropriate conductor for Single Sheave Pulley Blocks is LGJ500, which indicates that the aluminum in our conducting wire has a maximum cross-section of 500 square millimeters.
The Single Sheave Pulley Blocks are created with an assembled construction. It is quite handy to separate the conductor from the center sheave, hence reducing the weight during transit. We can also supply rubber-coated aluminum sheaves, rubber-coated MC nylon sheaves, and reinforced nylon sheaves coated with polyurethane.
