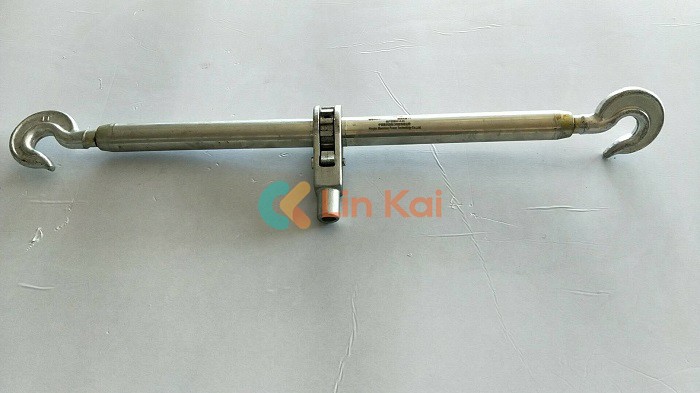

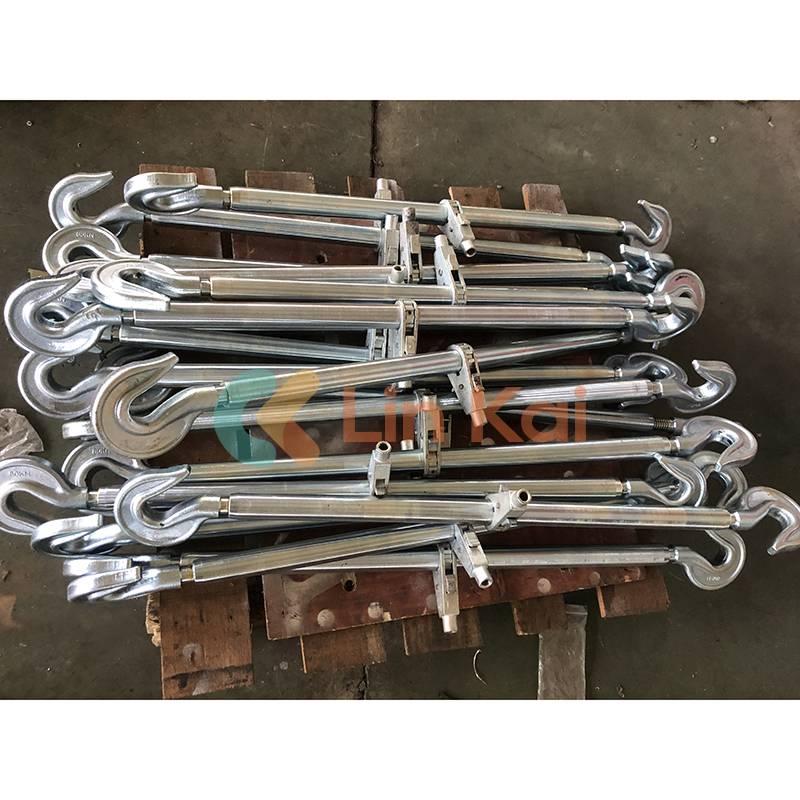

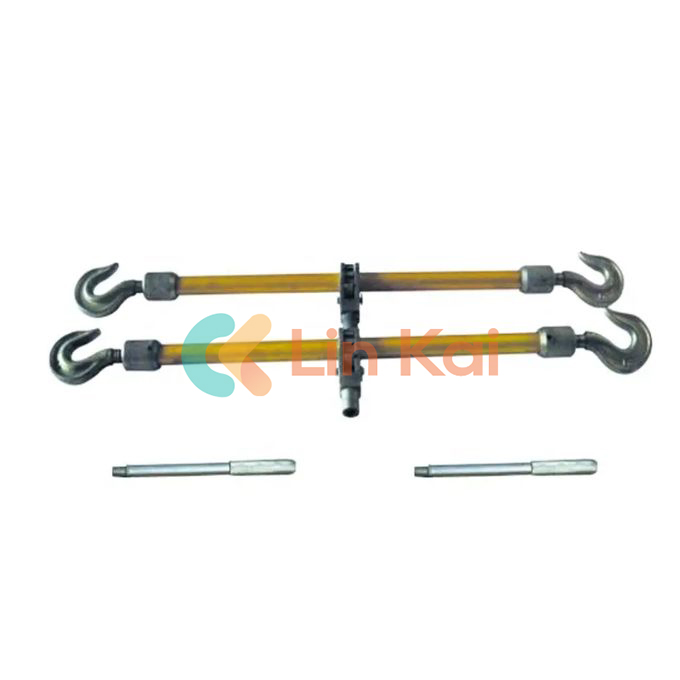

Steel Hook Double Turnbuckle manufactured by Ningbo Lingkai is the transmission line accessory. It is used in power transmission construction and telecommunications engineering. Our steel hook double is applied to tightening the conductor, steel wire rope, or steel stranded wire when installing stay wire and replacing insulator string. Ningbo Lingkai’s bulk steel Hook Double Turnbuckle has a tightening range that is big, practicable, and strong. its safe and reliable.
The steel hook double turnbuckle is also equipped with a 360-degree swivel eye, allowing you to adjust it to any angle, making it easier to use in tight spaces.
One of the most impressive features of our steel Hook Double Turnbuckle is its ability to withstand harsh weather conditions, extreme temperatures, and corrosive environments, ensuring long-lasting performance. This makes it a perfect fit for use in transmission lines. Easy to install and use, this turnbuckle is a reliable and versatile tool for electrical engineers and technicians.
|
Item number |
Model |
Rated Load (KN) |
Max Center Distance (mm) |
Adjustable Distance （mm） |
Weight （mm） |
|
14111 |
SJS-0.5 |
5 |
800 |
250 |
2.5 |
|
14112 |
SJS-1 |
10 |
860 |
300 |
3.5 |
|
14113 |
SJS-2 |
20 |
1050 |
340 |
4 |
|
14114 |
SJS-3 |
30 |
1350 |
470 |
6 |
|
14115 |
SJS-5 |
50 |
1440 |
510 |
8 |
|
14116 |
SJS-8 |
80 |
1670 |
560 |
8.5 |
|
14117 |
SJS-10 |
100 |
1740 |
600 |
10 |
|
Item number |
Model |
Rated Load (KN) |
Max Center Distance (mm) |
Adjustable Distance （mm） |
Weight （kg） |
|
14121 |
SJSL-1 |
10 |
798 |
290 |
2 |
|
14122 |
SJSL-2 |
20 |
936 |
350 |
2.5 |
|
14123 |
SJSL-3 |
30 |
1296 |
530 |
4.5 |
|
14124 |
SJSL-5 |
50 |
1500 |
630 |
6 |
