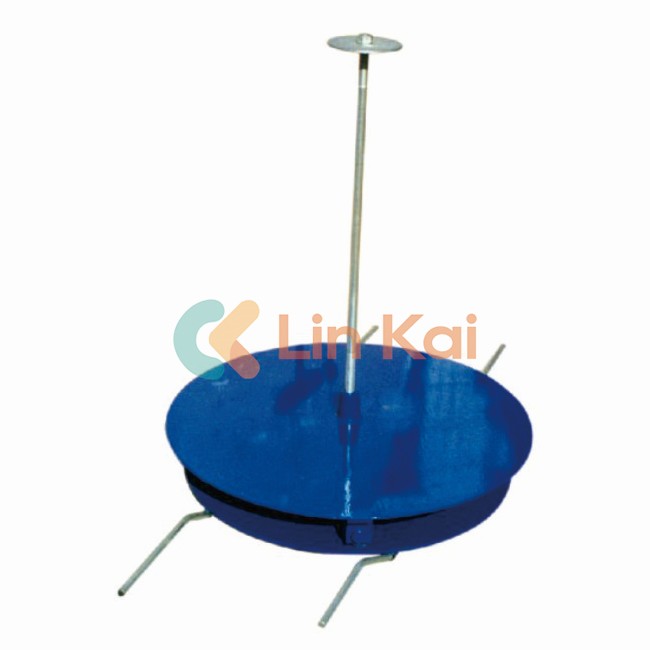

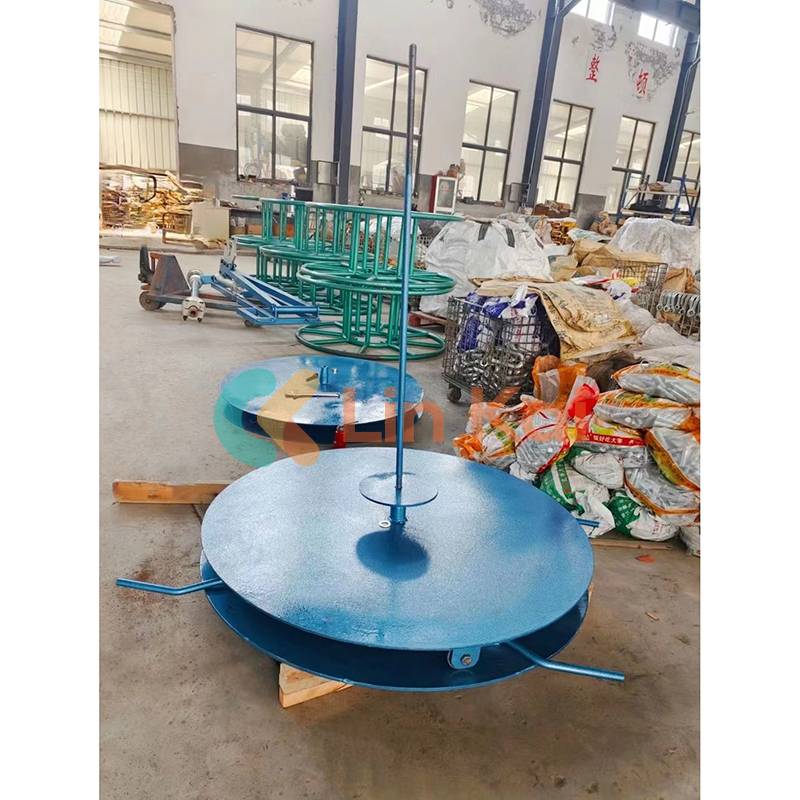

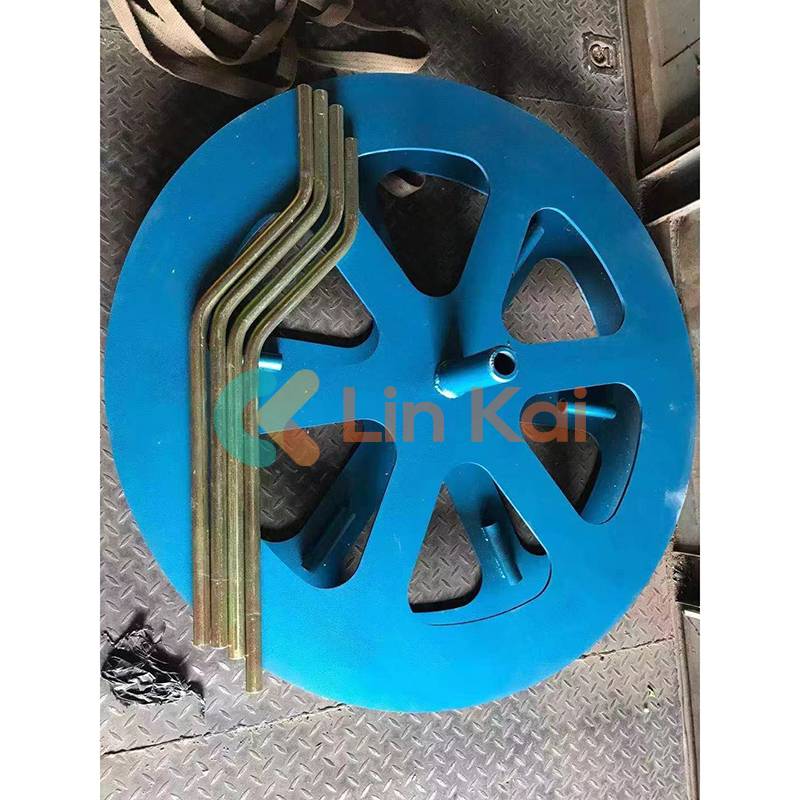

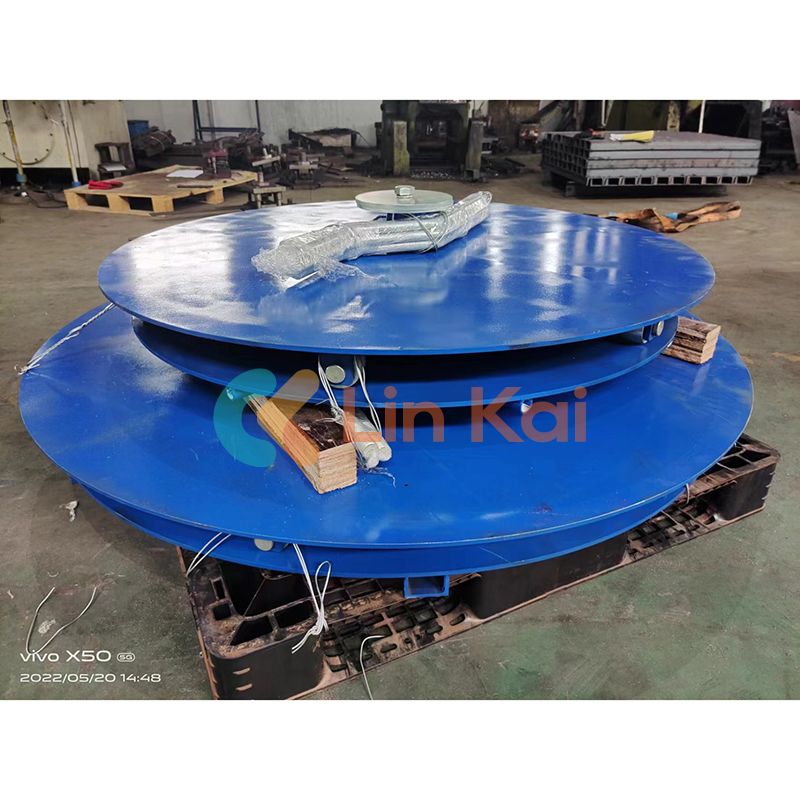

China-made Upright Payout Turntable from Ningbo Lingkai Manufacturing Since the cover slab is composed of the large, complete steel that we cut, it possesses an adequate force and bearing load based on the data. It features two slab sheets with eight and sixteen pairs of bearings in between the slabs. It has smooth rotational motion.
The Upright Payout Turntable is the vertical pay-off frame suitable for supporting the wire reel during line construction. When pulling wires and ground wires, the wire reel can automatically rotate and unfold.
|
Item Number |
Model |
Diameter of Reel (mm) |
Bearing Load (kg) |
Weight (kg) |
Features |
|
15131 |
SIW-1 |
Φ500 |
1000 |
36 |
Small cover slab |
|
15132 |
SIW-3A |
Φ800 |
3000 |
70 |
|
|
15133 |
SIW-3B |
Φ1000 |
3000 |
102 |
|
|
15134 |
SIW-3 |
Φ800 |
3000 |
92 |
Big cover slab |
|
15135 |
SIW-5 |
Φ1500 |
5000 |
129 |
Small cover slab |
Besides the Upright Payout Turntable in stock, we also manufacture the 1-5 ton column frame type mechanical cable simple reel stands. It is with the trapezoidal structure, can applied in different kinds of reel specification. Be equipment with hydraulic lifting jack, helps it lifts tools easily. Trundles installed on the bottom make it easy to move too. This is be purchased by set, and if needs the extra axle (Φ60×2200mm seamless steel pipe), just let us know freely. It is apply to adjusting reel by screw mandrel, and wire releasing manually.
|
Item number |
Model |
Rated load (kN) |
Range of adjustable height (mm) |
Weight (kg) |
Feature |
|
15191 |
SIL-1 |
10 |
450-650 |
22 |
Pillar style |
|
15192 |
SIL-3 |
30 |
600-900 |
24 |
|
|
15193 |
SIL-5 |
50 |
900-1300 |
27 |
|
|
15201 |
SIK-3 |
30 |
400-1000 |
30 |
Frame style |
|
15202 |
SIK-5 |
50 |
710-1270 |
44 |
|
|
15211 |
SIL-3A |
30 |
620-1000 |
28 |
Pillar base-Frame style |
|
15212 |
SIL-5A |
50 |
900-1300 |
35 |
