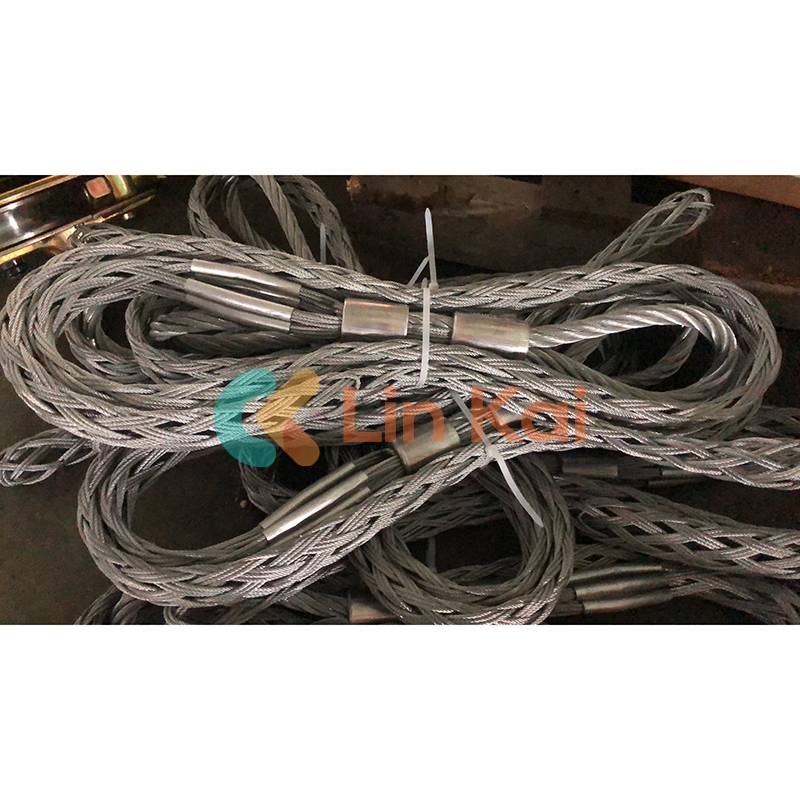

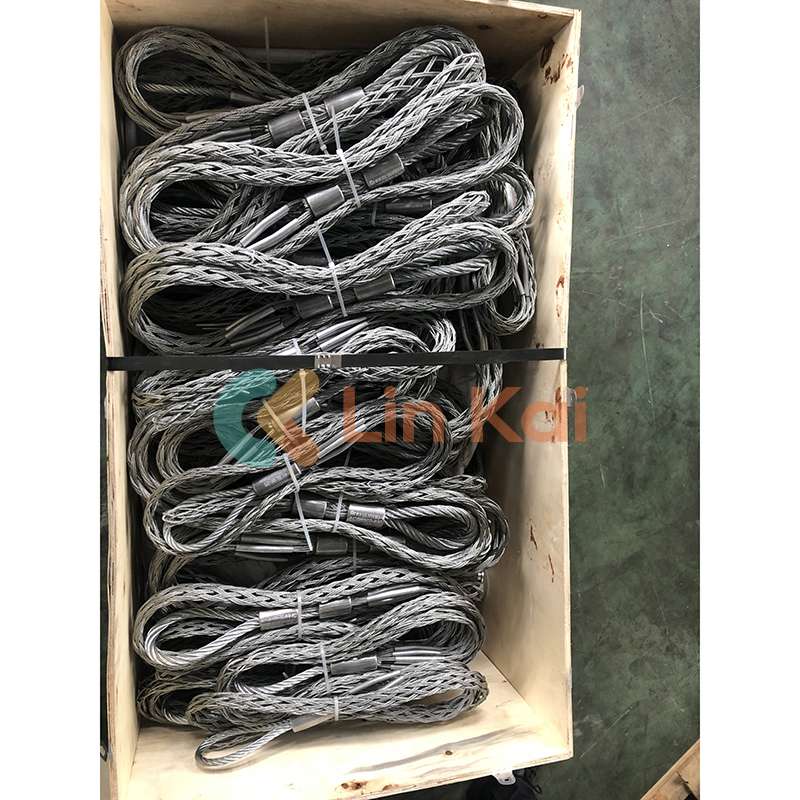

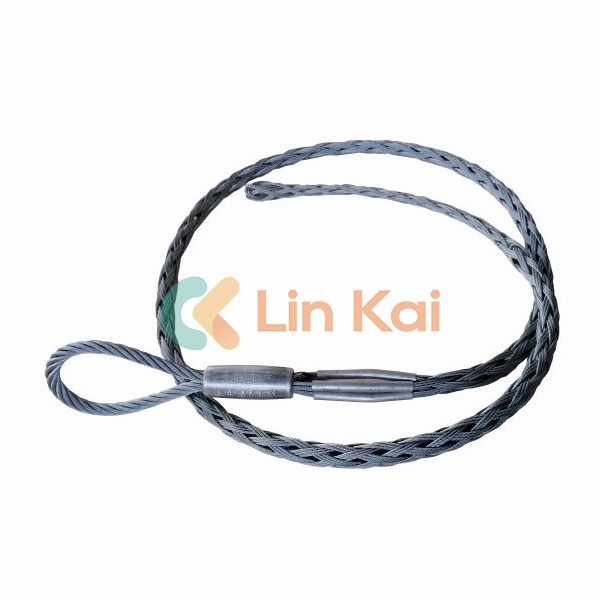

Our Cable Pulling Grips are commonly used for stringing the electric power cable, communication cable, as well as fiber optic cable. Cable Pulling Grips are sleeves made of strong and durable material, used to cover and connect segments of cables or wires together. They are used especially in underground and underwater applications, where cables need to be joined and sealed to prevent the entry of water or contaminants.
Cable Pulling Grips are made of the high strength galvanized steel wire, braided in very soft ways and pressed with protection aluminum sleeve and copper sleeve. The sleeve could protect the conductor, and prevent the head of OPGW to damage the Mesh Socket Joints.
|
Item Number |
Model |
Diameter of Suitable Cable (mm) |
Rated Load (kN) |
|
21361 |
SLW16 |
Φ12~16 |
8 |
|
21362 |
SLW20 |
Φ16~20 |
10 |
|
21363 |
SLW25 |
Φ20~25 |
12 |
|
21364 |
SLW37 |
Φ25~37 |
18 |
|
21365 |
SLW50 |
Φ37~50 |
28 |
|
21366 |
SLW60 |
Φ50~60 |
15 |
|
21367 |
SLW80 |
Φ60~80 |
20 |
|
21368 |
SLW100 |
Φ80~100 |
25 |
|
21369 |
SLW120 |
Φ100~120 |
30 |
|
21370 |
SLW150 |
Φ120~150 |
30 |
|
Single head Item No. |
Double head Item No. |
Model |
Cable Diameter (mm) |
Load (KN) |
|
|
With protector |
w/ protector |
Rated |
Break |
||
|
17141 |
17141S |
SLE(S)-1 |
Φ 8-12 |
10 |
30 |
|
17142 |
17142S |
SLE(S)-1.5 |
Φ 11-15 |
15 |
45 |
|
17143 |
17143S |
SLE(S)-2 |
Φ 15-18 |
20 |
60 |
|
17144 |
17144S |
SLE(S)-2.5 |
Φ 18-22 |
25 |
75 |
