Lingkai's high-quality Splicing Sleeves Protector is a durable and cost-effective solution that provides reliable protection for ACSR splices in transmission and distribution applications. Splicing Sleeves Protector is made from high-quality materials.
Our Splicing Sleeves Protector is designed to ensure optimal connections between ACSR conductors while protecting them against environmental factors.

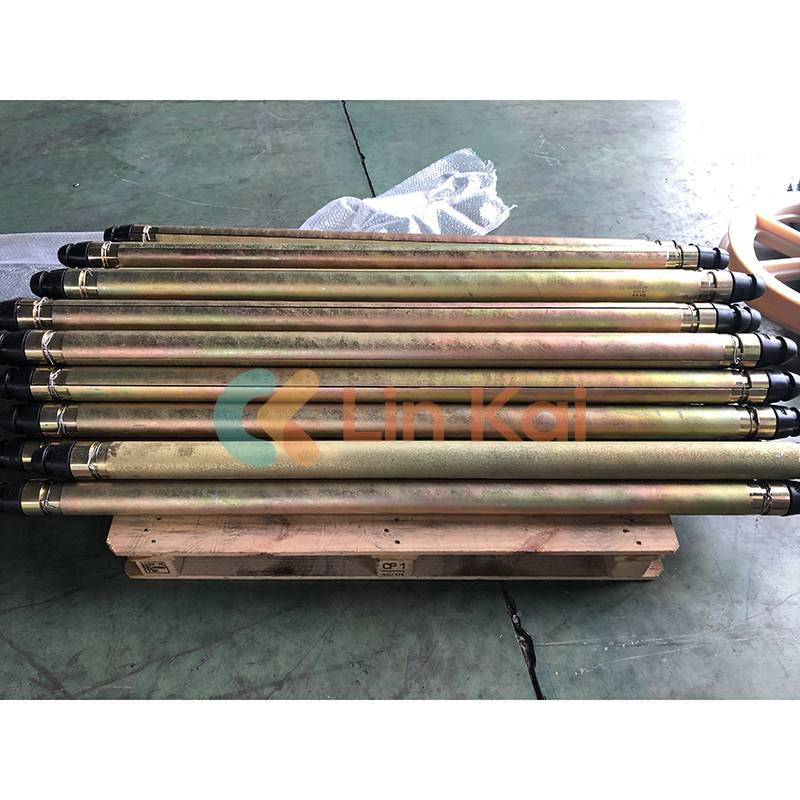

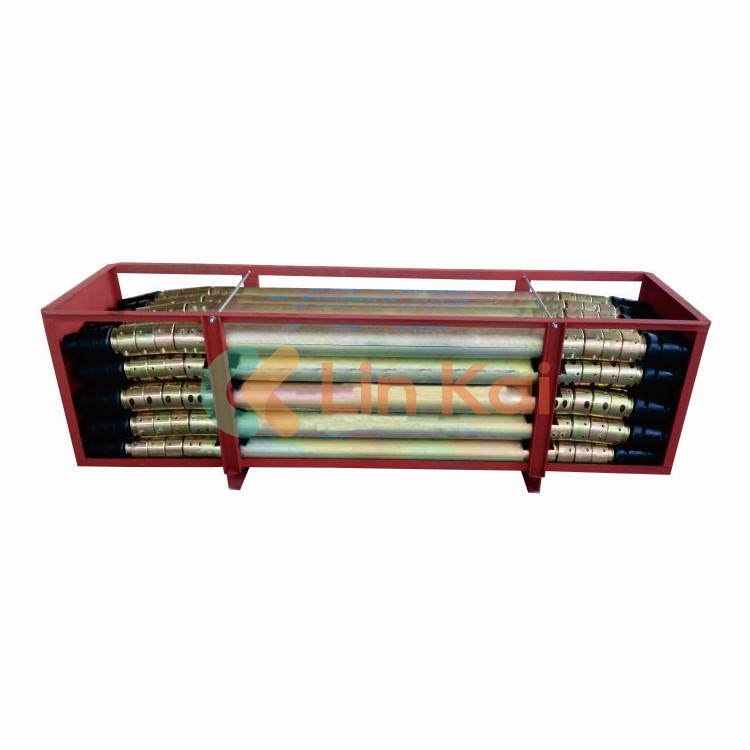

The cover joints consist of two pieces of shells, which are made of galvanized steel. Both ends are installed with rubber parts, which protect the mid-span joint during the passage over the stringing pulleys.
Splicing Sleeves Protector (stiffeners) are used to protect the conductor joint during overhead conductor stringing operations.
|
Item Number |
Model |

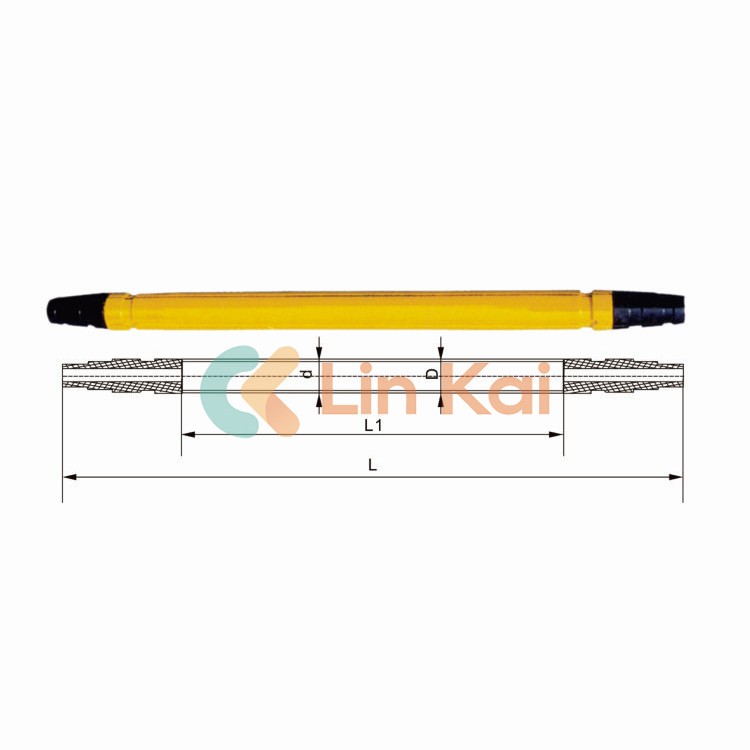

Main Dimension (mm) |
Applicable Earth Wire |
|||
|
D |
L |
d |
L1 |
|||
|
17213 |
J55G |
Φ30 |
450 |
Φ24 |
280 |
GJ50, GJ55 |
|
17214 |
J70G |
Φ30 |
510 |
Φ24 |
340 |
JLB65, GJ70 |
|
17215 |
J80G |
Φ34 |
510 |
Φ27 |
340 |
GJ80 |
|
17216 |
J95G |
Φ34 |
585 |
Φ27 |
415 |
JLB95 |
|
17217 |
J100G |
Φ38 |
590 |
Φ28 |
390 |
LGJ50/30, GJ100 |
|
17218 |
J120G |
Φ40 |
660 |
Φ30 |
440 |
GJ120, JLB120 |
|
17219 |
J150G |
Φ45 |
850 |
Φ37 |
530 |
GJ150, LGJ70/40, LGJ95/55 |
RemarkThe requirement for different sizes should be indicated in the contract.
This ACSR Splicing Sleeves Protector is applicable to the crimp tube, which complies with the DL/T758-2001 standard of splicing fittings adopting hydraulic lap joint. If the size of crimp tube is different from the standard, the dimension of splicing Sleeves should be indicated in the contract.
|
Item Number |
Model |
Main Dimension (mm) |
Applicable Conductor (Max.) |
|||
|
D |
L |
d |
L1 |
|||
|
17201 |
J240B |
Φ45 |
850 |
Φ38 |
530 |
LGJ240/55 |
|
17202 |
J300B |
Φ51 |
940 |
Φ43 |
600 |
LGJ300/50 |
|
17203 |
J400B |
Φ57 |
995 |
Φ47 |
655 |
LGJ400/50 |
|
17204 |
J500B |
Φ68 |
1080 |
Φ56 |
740 |
LGJ500/65 |
|
17205 |
J630B |
Φ83 |
1180 |
Φ63 |
800 |
LGJ630/55 |
|
17206 |
J720B |
Φ83 |
1196 |
Φ63 |
816 |
LGJ720/50 |
|
17207 |
J900B |
Φ89 |
1180 |
Φ73 |
800 |
LGJ900/75 |
|
10208 |
J1000B |
Φ95 |
1400 |
Φ75 |
1020 |
LGJ1000/80 |
