Fixed Joints Wire Connector

During transmission line stringing operations, fixed joints wire connectors manufactured in China by Ningbo Lingkai are used to link anti-twisting steel wire rope or dyneema rope. The Bulk Fixed Joints Wire Connector is composed of premium steel that exhibits exceptional strength and compact design. Please feel free to ask us about the price of a fixed joint wire connector.

Fixed Joints Wire Connector

Fixed Joints Wire Connector made in China by Ningbo Lingkai is also called the Pilot wire rope connector used for connection of pilot wire rope, anti-twisting steel rope or fiber pulling rope(nylon rope or Dyneema rope) in power line stringing operation.




Germany bearings are used inside of durable Fixed Joints Wire Connector that are manufactured in Lingkai Manufacture, China, and are 5 T and beyond. Its purpose is to strengthen the overhead line transmission's highly rated load.  It is made of high-strength alloy steel, and a sleeve protects the connector's axle. The hydraulic puller tensioner's bull wheels may be passed through with braided steel rope that resists twisting thanks to the fixed joints.

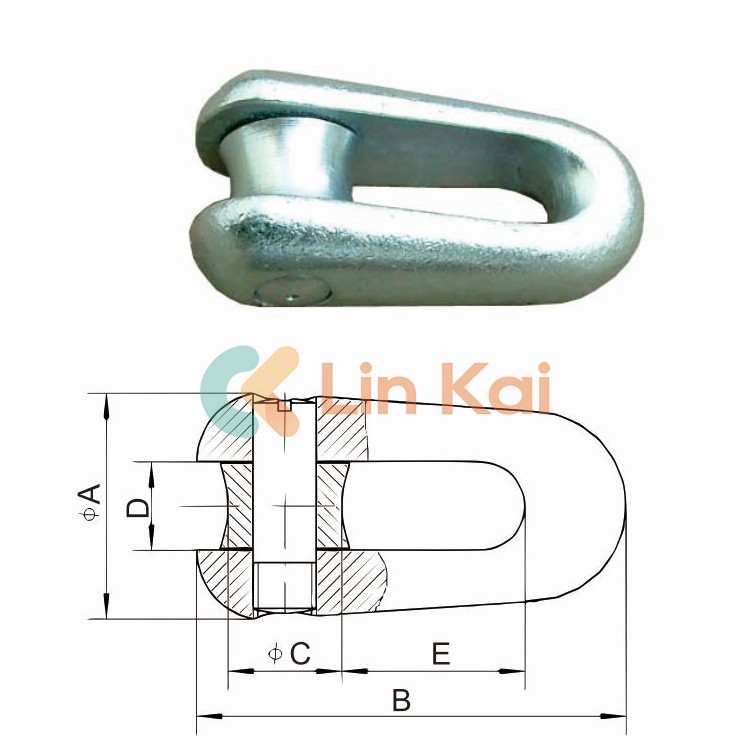

Fixed Joints Wire Connector dada sheet.

“U” Shape Pilot Wire Connectors

Item No.

Model

Dimension of Connector (mm)

Rated Load (KN)

Weight (kg)

A

B

C

D

E

17111

SLU-1

36

68

18

14

24

10

0.2

17112

SLU-3

37

76

20

17

28

30

0.2

17113

SLU-5

50

98

23

19

43

50

0.6

17114

SLU-8

58

120

28

25

52

80

1.1

17115

SLU-10

59

126

30

26

54

100

1.2

17116

SLU-13

61

134

32

27

56

130

1.2

17117

SLU-15

63

138

37

28

58

150

1.4

17118

SLU-25

80

178

44

35

72

250

3.0

17118A

SLU-28

80

178

44

35

72

280

3.0

17119

SLU-32

85

186

42

38

80

320

3.9
