Swivel Joints

Swivel Joints of Transmission line Stringing Accessories Factory in China, please find Ningbo Lingkai manufacture. We made the army steel of the stringing accessories with top-class and imported German bearings inside to enhance the strength of the overhead line stringing construction. To get the Swivel Joints of Transmission Line Stringing Accessories quote price list, just freely inquire with us at any time.

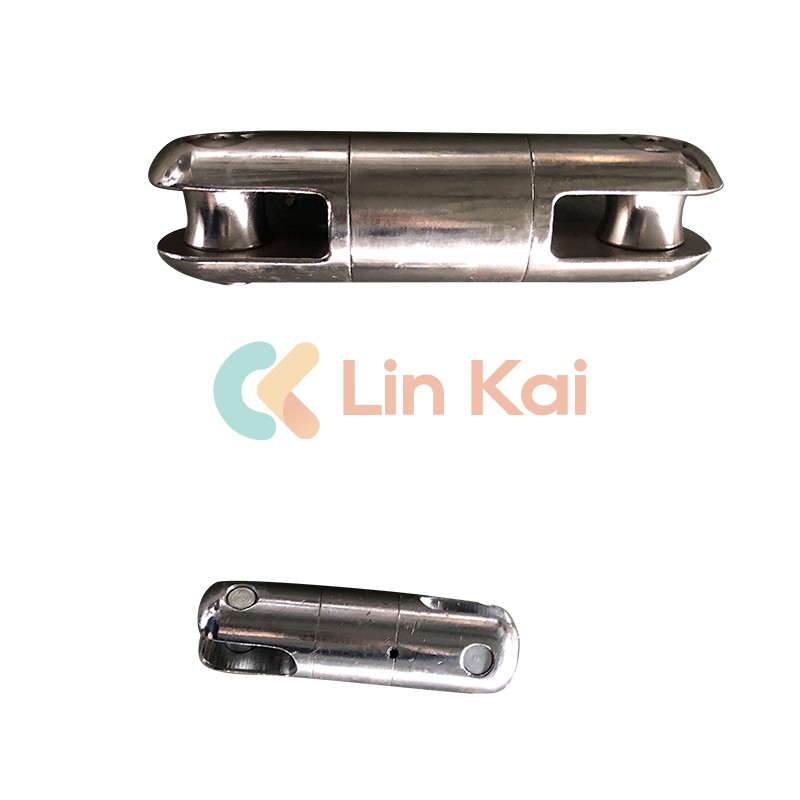

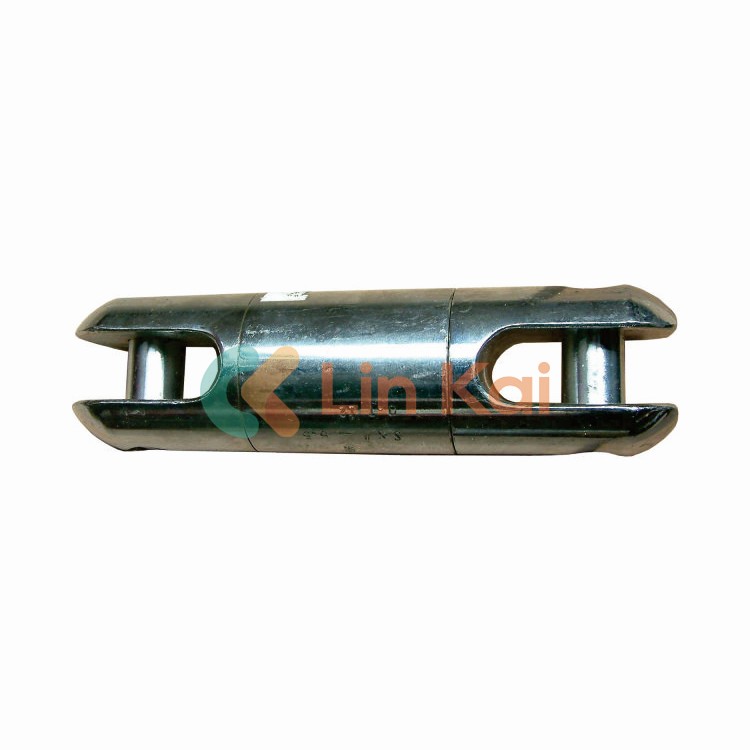

Swivel Joints

Swivel Joints of Transmission line Stringing accessories made in China by Ningbo Lingkai apply to connecting the conductor and ACSR with steel-stranded rope in the overhead line stringing site. It can release the torsion strain accumulation of wire rope. The line stringing swivel is for pulling conductors, and it always works with the mesh sock. The bearing balls inside are to eliminate the torque force generated by the stringing conductors.



Swivel Joints of Transmission line Stringing accessories are suitable to connect the pulling rope to the mesh sock joints mounted on the conductor. They are made of high-tensile galvanized alloy steel. The special design can afford the high radial loads, which often happen during the passage of the pulleys.

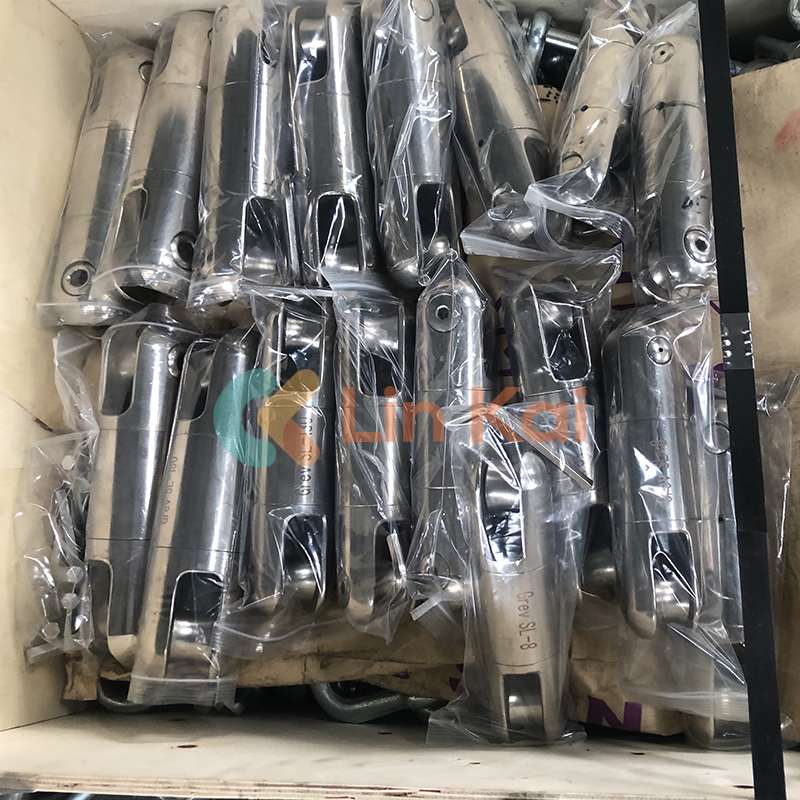

Swivel Joints of Transmission line Stringing Accessories in stock.

Item No.

Model

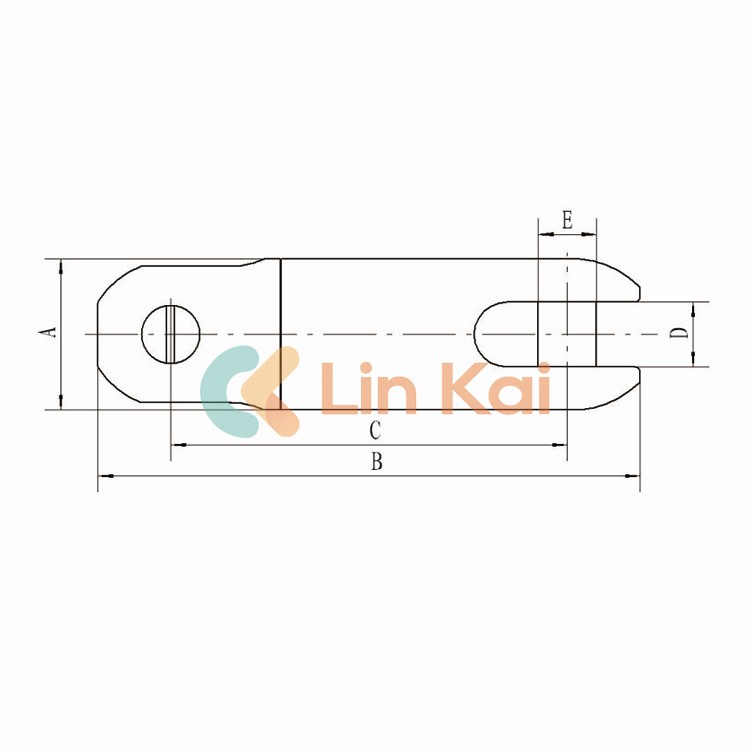

Dimension of Connector (mm)

Rated Load (KN)

Weight (kg)

A

B

C

D

E

17121

SLX-0.5

19

61

40

8

9

5

0.2

17122

SLX-1

30

100

72

12

13

10

0.4

17123

SLX-2

35

120

90

14

14

20

0.55

17124

SLX-3

37

129

92

16

16

30

0.65

17125

SLX-5

42

154

115

18

17

50

1.5

17126

SLX-8

57

220

165

24

22

80

2.4

17127

SL130

62

248

192

26

24

130

3.5

17128

SL180

75

294

222

26

26

180

7.2

17129

SL250

85

331

251

30

30

250

10.6

17130

SL250Y

80

323

243

30

30

250

8.0

17130A

SL320

85

346

264

38

30

320

9.7
