Products
High Strength Shackle
  • High Strength ShackleHigh Strength Shackle
  • High Strength ShackleHigh Strength Shackle
  • High Strength ShackleHigh Strength Shackle

High Strength Shackle

Low price High Strength Shackle, made by Ningbo Lingkai Manufacturing, is made of high-strength steel and is available in bulk. This high-strength shackle is to connect steel rope with loading operations. Good-quality shackles are made with materials like alloy steel that provide increased strength and durability. These also undergo rigorous testing to ensure that they meet strict safety standards.

High Strength Shackle

High strength shackles made in China by Ningbo Lingkai are used in overhead line sites to connect wire ropes, cables, and other equipment. These shackles have a high load-bearing capacity, which is crucial for supporting heavy loads at the overhead line sites.



The use of high strength shackles at overhead line sites provides several benefits.

1. High strength shackles are resistant to corrosion and rust, a common problem in coastal areas.

2. They offer a high level of safety and security, ensuring the seamless operation of the overhead lines.

3. Highstrength shackles have a long service l

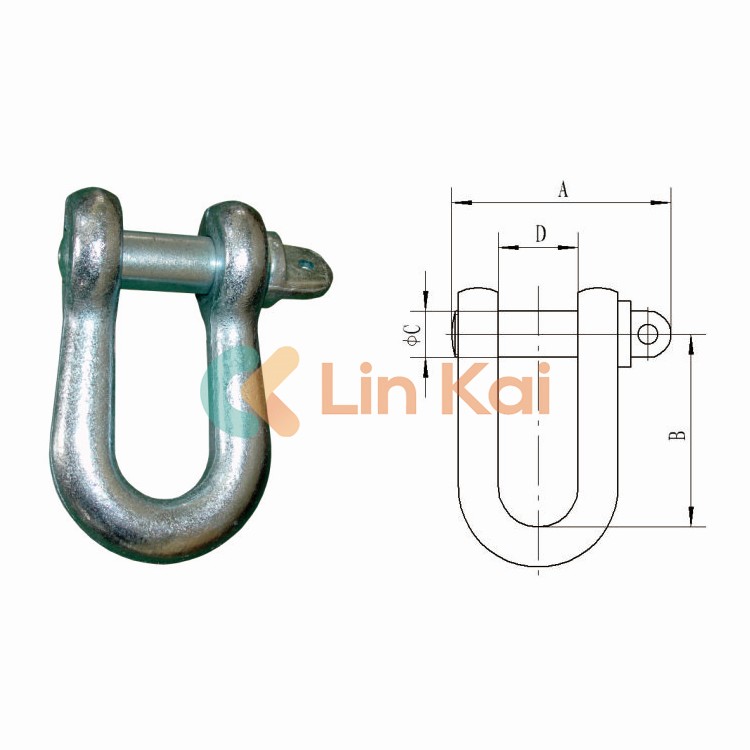

High strength shackle Technical Parameters

Item Number

Model

Main Dimension (mm)

Rated Load (kN)

Weight(kg)

A

B

C

D

17131

GXK-1

55

42

12

20

10

0.15

17132

GXK-2

67

58

16

24

20

0.29

17133

GXK-3

97

82

20

34

30

0.8

17133A

GXK-3A

97

112

20

34

30

0.9

17134

GXK-5

107

89

22

38

50

1.12

17134A

GXK-5A

107

131

22

38

50

1.29

17135

GXK-8

128

97

30

45

80

2.4

17136

GXK-10

141

114

34

48

100

3.56

17137

GXK-16

152.5

139

37

54

160

4.8

17138

GXK-20

164

140

39

60

200

5.17

17139

GXK-30

186

146

50

68

300

7.5
