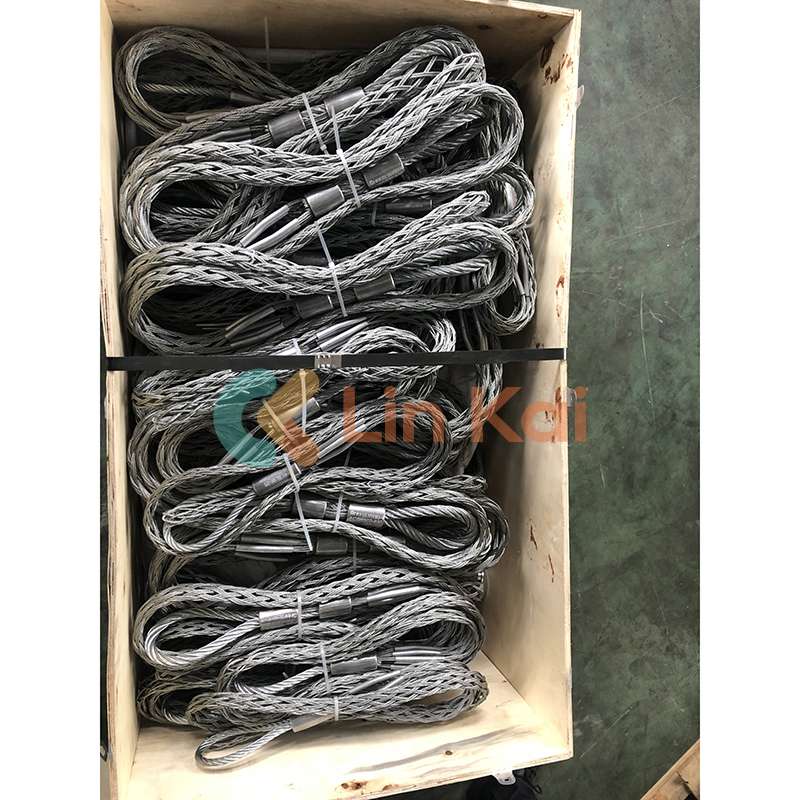

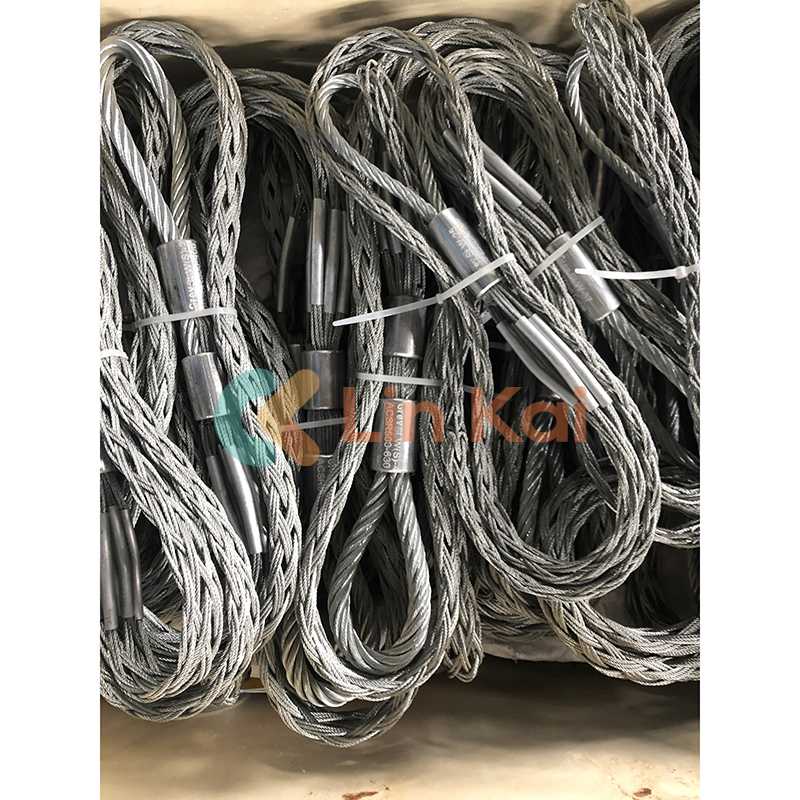

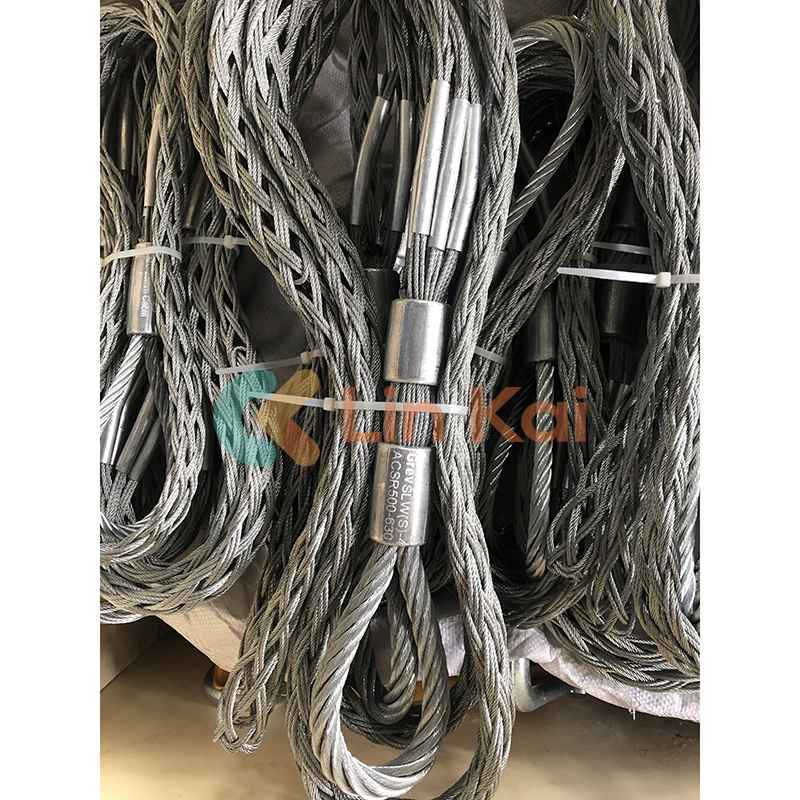

Conductor Mesh Socket Joints, made in China by Ningbo Lingkai, are braided from high-strength galvanized steel wire; the length and diameter can be customized per the applicable conductor if demanded.
Conductor Mesh Socket are used for pulling overhead conductors, OPGW and earth wires, underground power cables, or telecom optic fiber cables.
|
Single head Item No. |
Double head Item No. |
Model |
Conductor Size (mm²) |
Load (KN) |
|
|
With protector |
w/ protector |
Rated |
Break |
||
|
17161 |
17181 |
SLW-1.5 |
ACSR70-120 |
15 |
45 |
|
17162 |
17182 |
SLW(S)-2 |
ACSR120-150 |
20 |
60 |
|
17163 |
17183 |
SLW(S)-2.5 |
ACSR185-240 |
25 |
75 |
|
17164 |
17184 |
SLW(S)-3 |
ACSR300-400 |
30 |
90 |
|
17165 |
17185 |
SLW(S)-4 |
ACSR500-600 |
40 |
120 |
|
17166 |
17186 |
SLW(S)-5 |
ACSR720 |
50 |
150 |
|
17167 |
17187 |
SLW(S)-7 |
ACSR900 |
70 |
210 |
|
17168 |
17188 |
SLS(S)-8 |
ACSR1000-1120 |
80 |
240 |

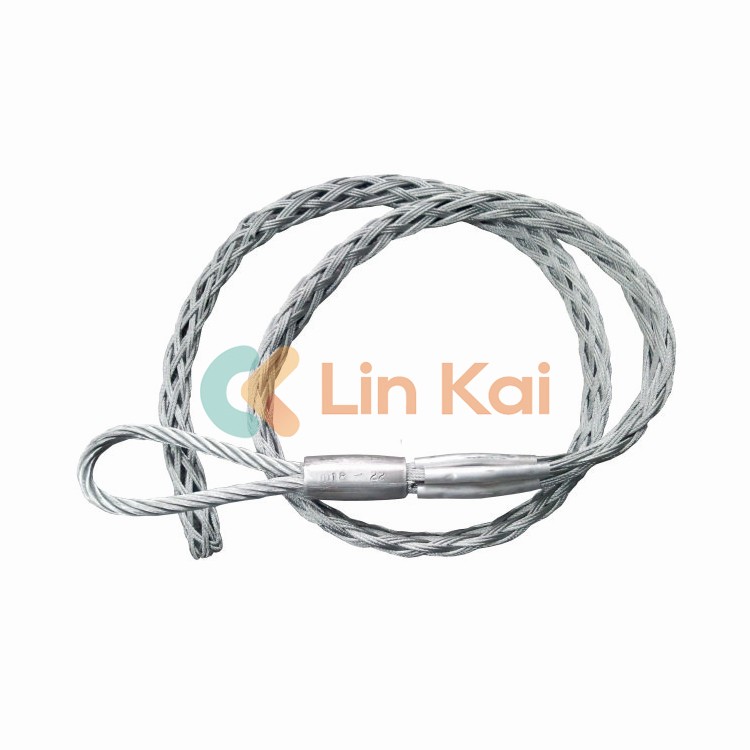

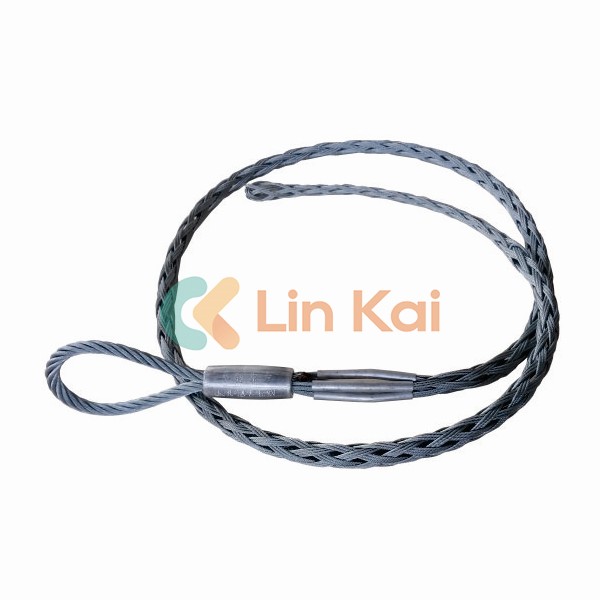

Conductor Mesh Socket Joints, also called Mesh Socket Joints, are made of high-strength galvanized steel wire, braided in very soft ways, and pressed with a protective aluminum sleeve and copper sleeve. The sleeve could protect the conductor and prevent the head of the conductor from damaging the Mesh Socket Joints.
|
Single head Item No. |
Double head Item No. |
Model |
Cable Diameter (mm) |
Load (KN) |
|
|
With protector |
w/ protector |
Rated |
Break |
||
|
17141 |
17141S |
SLE(S)-1 |
Φ 8-12 |
10 |
30 |
|
17142 |
17142S |
SLE(S)-1.5 |
Φ 11-15 |
15 |
45 |
