With both nylon and aluminum sheaves, our cable ground roller are perfect for wires dwindling in diameter to less than 200mm.
Larger diameter cables work well with the triple sheave cable roller, which can be tailored to produce any necessary turning angle.
Our cable entrance protection roller, which is intended to safeguard cable extensions, is able to be positioned within a tube entrance at any angle. It features a single nylon sheave to maintain cable alignment and a strong, lockable zinc-coated steel surface.
The D series cable entrance protection roller has a single nylon sheave and an improved length fixed mechanism.
For safeguarding wires and pulling ropes at the pithead, our cable pithead roller is a necessary instrument.
Our team of technical specialists is ready to help and respond to any inquiries you might have regarding our offerings. To help you get the most of our tools, we also provide services like product training and on-site support.
Our Electrical Cable Pulling Tools are the ideal option for your cable installation needs, regardless of the size of your project—small residential or large commercial.

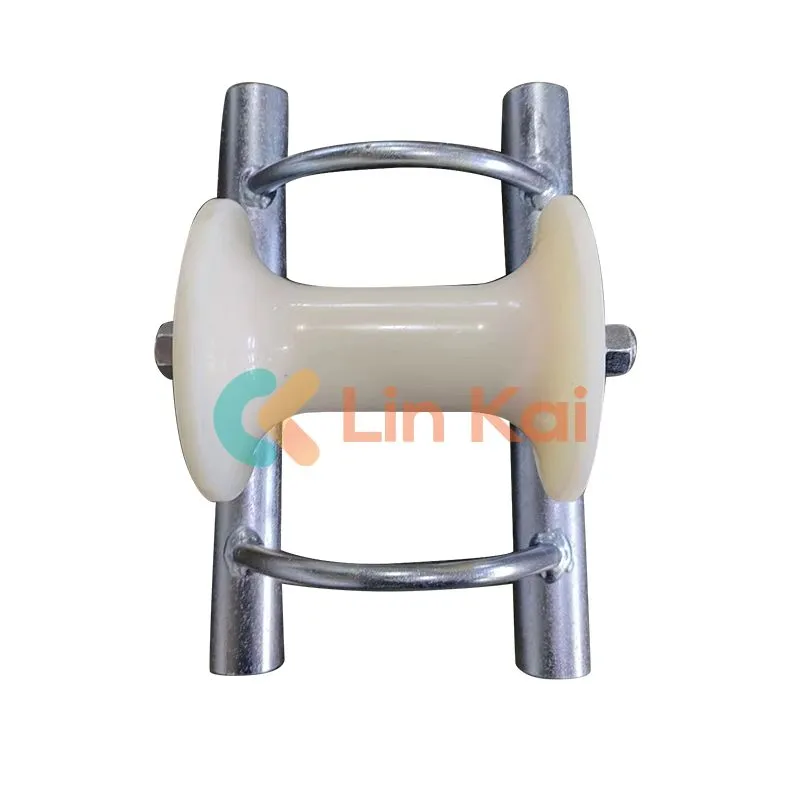

High quality Straight line cable pulling roller for laying underground cable
|
Item No. |
Model |
Working load (KN) |
Diameter of Cable |
Construction of Cable Roller |
Weight (kg) |
|
21171 |
SHL1 |
10 |
Φ150 |
Casting Aluminum Frame Aluminum Roller |
5.4 |
|
21172 |
SHL1N |
10 |
Φ150 |
Casting Aluminum Frame Nylon Roller |
3.6 |
|
21181 |
SHL1B |
10 |
Φ160 |
Steel Plate Base Aluminum Roller |
5.5 |
|
21182 |
SHL1BN |
10 |
Φ150 |
Steel Plate Base Nylon Roller |
3.7 |
|
21183 |
SHL2BN |
10 |
Φ160 |
5.5 |
|
|
21184 |
SHL3BN |
10 |
Φ200 |
8.0 |
|
|
21191 |
SHL1G |
10 |
Φ150 |
Steel Tubing Frame Aluminum Roller |
5.1 |
|
21192 |
SHL1GN |
10 |
Φ150 |
Steel Tubing Frame Nylon Roller |
3.3 |
|
21193 |
SHL2GN |
10 |
Φ160 |
5.7 |
|
|
21194 |
SHL3GN |
10 |
Φ200 |
8.0 |
|
|
21201 |
SHLG1 |
10 |
Φ150 |
Steel Tubing Long Legs Aluminum Roller |
9.4 |
|
21202 |
SHLG1N |
10 |
Φ150 |
Steel Tubing Long Legs Nylon Roller |
7.8 |
Note: The Straight line cable pulling rollers are used for installation different underground power cable up to diameter Ø200mm, please choose the suitable roller according to your cable size.
All the sheaves are mounted on bearings. The frame is made of galvanized steel.
|
Item No. |
Model |
Working load (KN) |
Size of Cables (mm) |
Weight (kg) |
|
21211 |
SHL |
8 |
≤ Ø80 |
5.5 |
|
21221 |
SHL2 |
10 |
≤ Ø150 |
12 |
|
21222 |
SHL2N |
10 |
≤ Ø150 |
10 |
|
21223 |
SHL3 |
10 |
≤ Ø150 |
11 |
|
21224 |
SHL3N |
10 |
≤ Ø150 |
9 |
Application: Cable Corner Rollers are used for installation power cable on corner of trench.
