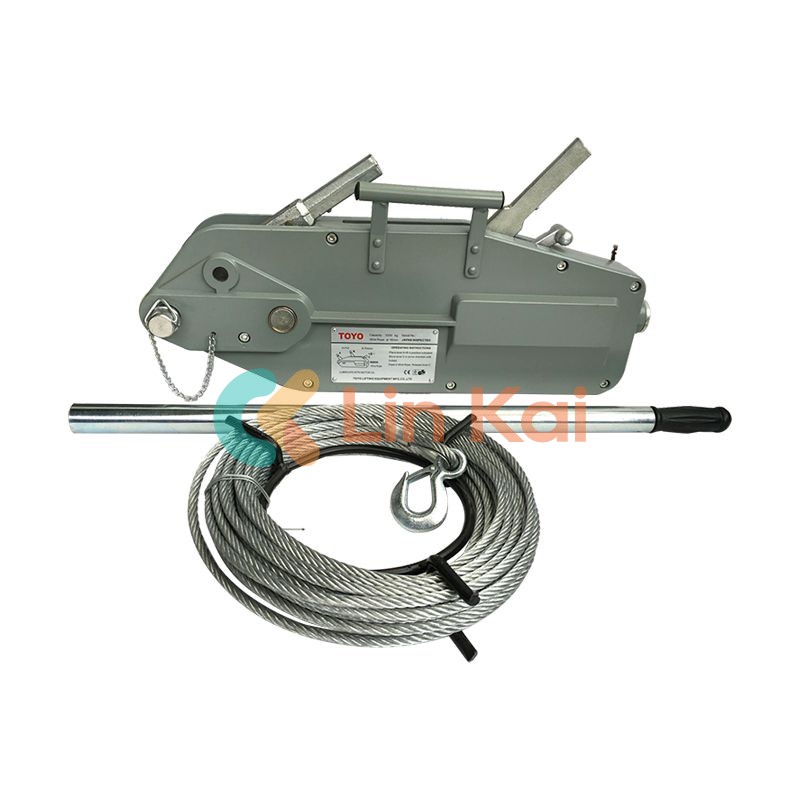

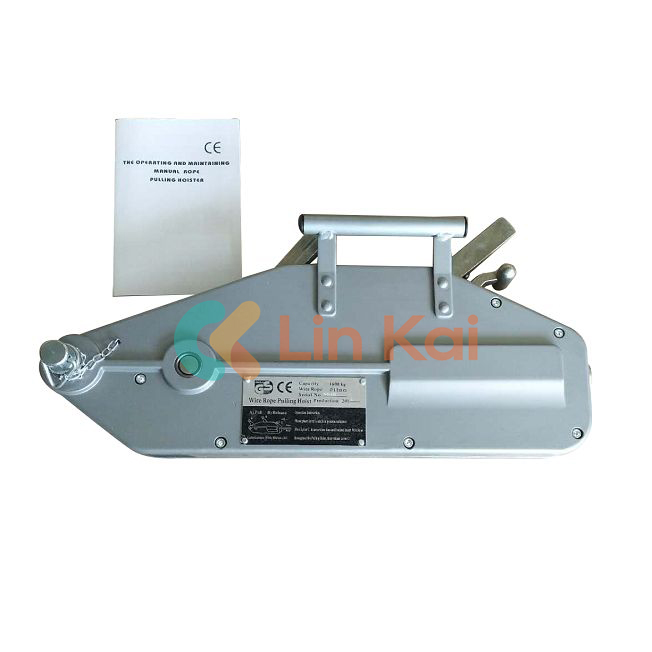

Ningbo Lingkai’s Tirfor Steel Rope Pulling Hand Winches, made in China in bulk, are used for lifting and tensioning operations during transmission line construction and stringing. It has a ratchet system that is easy to operate and flexible.
Tirfor Steel Rope Pulling Hand Winches made in Ningbo Lingkai manufacture, each one is tested under 1.5 times the rated capacity. The jaws and the connecting axle have been quenched, and the modules have been electroplated. The performance of the Tirfor Steel Rope Pulling Hand Winches will not be affected after the four-fold strength test.

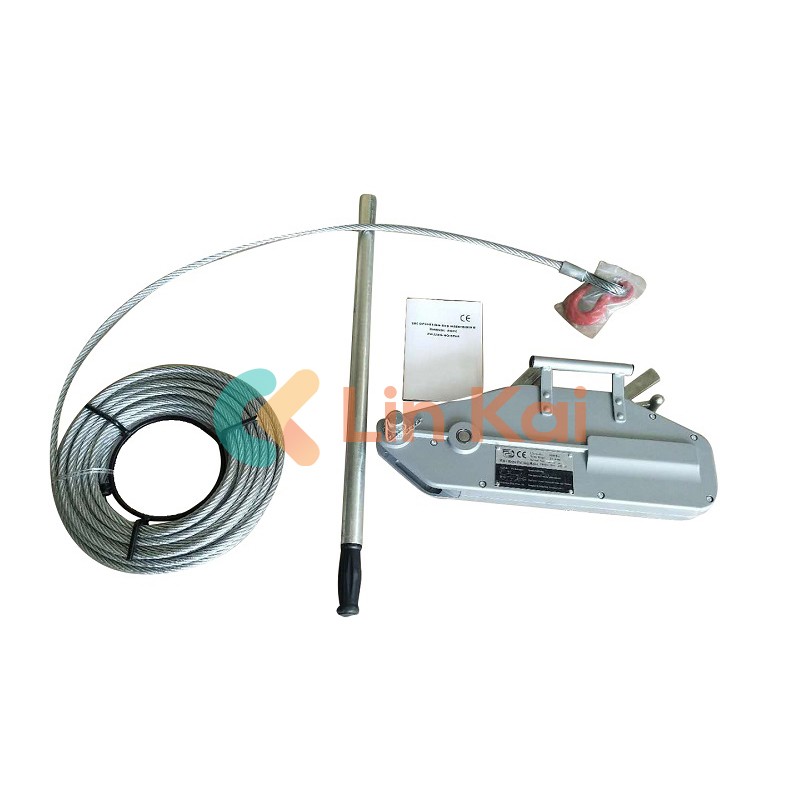

Our Tirfor Steel Rope Pulling Hand Winches have a simple structure and powerful function. The Tirfor Pulling Winch is used for transmission line pulling and conductor sagging operations. It is used with a hand bar and mechanical ratchet system for tightening the steel wire rope. The length of the wire rope is not limited; the standard length of the wire rope is 20m, but customized lengths are available upon request.
|
Item No. |
Model |
Lifting Load (KN) |
Pulling Load (KN) |
Steel Rope Dia.(mm) |
Stroke (mm) |
Steel Rope Length (m) |
Weight (kg) |
|
14183 |
HSS408 |
8 |
12.5 |
Φ8 |
≥40 |
20 |
6.8 |
|
14184 |
HSS416 |
16 |
25 |
Φ11.6 |
≥40 |
20 |
13 |
|
14185 |
HSS432 |
32 |
50 |
Φ16 |
≥16 |
20 |
25 |
|
14186 |
HSS454 |
54 |
54 |
Φ20 |
≥22 |
20 |
52 |
