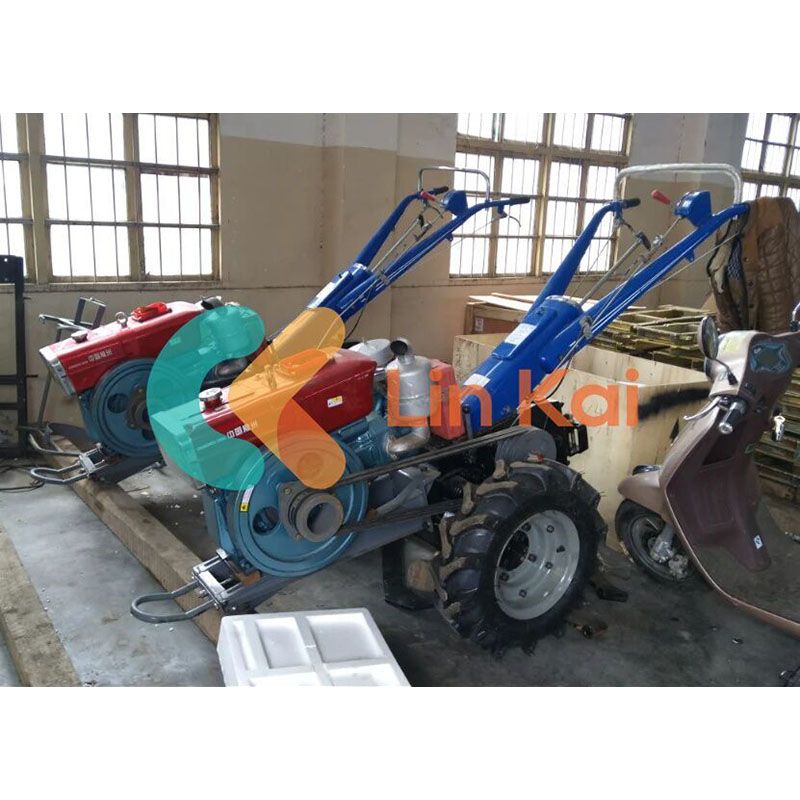

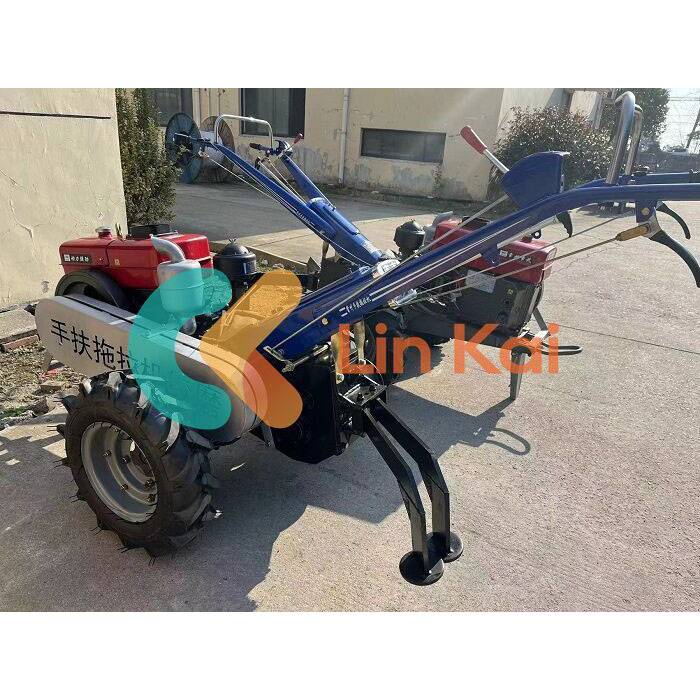

Cable Pulling Hand Tractor

2000 RPM Single Drum Cable Pulling Hand Tractor with Four Speed Gearbox made in China Ningbo Lingkai Manufacture has the Rapid Double Drum/Single Drum Speed Using a winch tractor to pull and lift while erecting a tower. During tower erection, this tractor is made to draw and move objects quickly and effectively. It is a great option for a variety of applications because it can be used with no-twist wire rope.

Cable Pulling Hand Tractor Introduction:

1. Forward gear, reverse gear, and four gears.

There are two forward and two reverse gears among the four gears on thisdurableCable Pulling Hand Tractor

2.  Both novice and expert operators will find it easy to operate because to high qualityCable Pulling Hand Tractor’s exceptional control and precision in operation.

Seven Groove, Double Drum: Safeguards the Wire Rope and Is Quick and Easy



3. Cable Pulling Hand Tractor’s twin drum design with seven grooves ensures quick and easy operation while protecting the wire rope.

For even the most difficult lifting and hauling tasks, this makes it an excellent option.



4.The 12-Type Walking Tractortwo years warrantieswas reformulated.

Reformed from the 12-type walking tractor, the walking tractor's grinding offers a level of dependability and durability that is difficult to equal. This implies that you can depend on this Cable Pulling Hand Tractor to consistently give excellent performance, even for the most taxing jobs.

Cable Pulling Hand Tractor Made in China Ningbo Lingkai data sheet

Item number

Model

Ground

Clearance(mm)

Wheel-base

(mm)

Power

(HP)

Speed

(RPM)

Travel speed(Km/H)

Outline

size(mm)

Weight(kg)

09171

12-A

150

1040

15

2000

3-13

2670x1040x1300

550

09172

12-B

150

1040

15

2000

3-13

2670x1040x1300

600

Gear

IV

reversalⅠ

reversalⅡ

Traction force(KN)

60

37

20

12

/

/

Traction speed(m/min)

11.7

18.9

34.4

55.6

6.2

21.3
