Conductor lifting tools for sagging made in China by Ningbo Lingkai functions are specialized devices used in electrical transmission line construction and maintenance to lift and support energized or de-energized conductors for sag adjustment. These tools are used when working on transmission lines that are suspended from towers or other structures in order to maintain proper tension and prevent sagging over long spans.

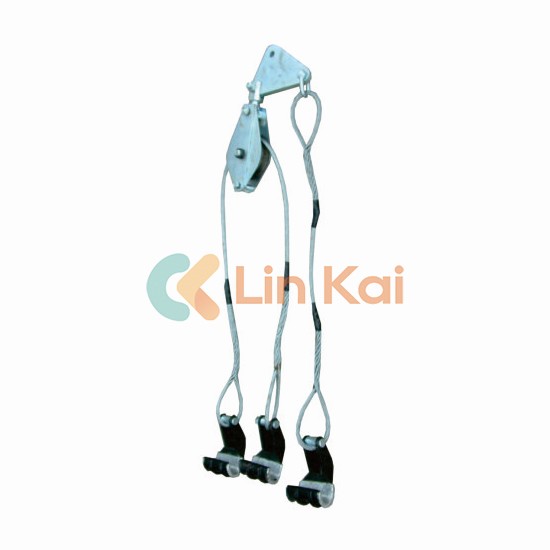

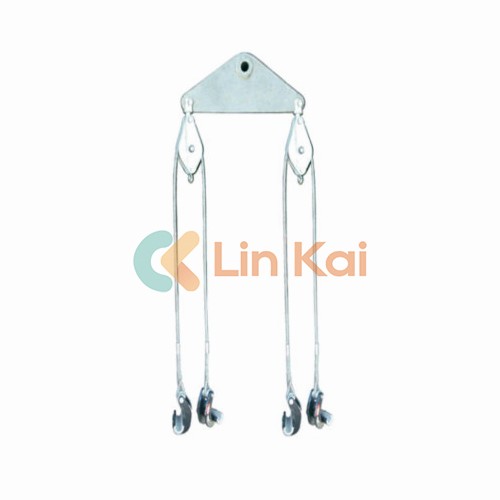

Our Conductor Lifting tools for Sagging shorten name is conductor lifter, which is

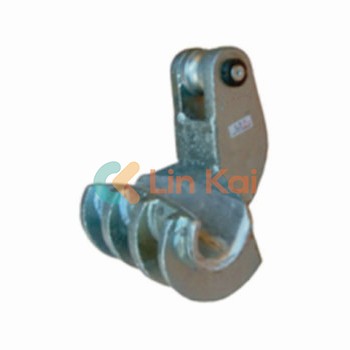

Used for lifting conductors during the sagging and installation in transmission line. And conductor lifting plate hooks t is made of steel and lined with aluminum alloy, it is to eliminate damage to the conductor.
|
Item No. |
Model |
Work load (KN) |
Lining Length (mm) |
Lining Width (mm) |
Weight (kg) |
|
19101 |
ST8 |
8 |
60 |
36 |
1 |
|
19102 |
ST12 |
12 |
120 |
48 |
2.5 |
|
19103 |
ST25 |
25 |
200 |
40 |
7 |
|
19104 |
ST40 |
40 |
260 |
50 |
10.5 |
|
19105 |
ST60 |
60 |
265 |
60 |
12 |
|
Item No. |
Model |
Work load (KN) |
Lining Length (mm) |
Weight (kg) |
|
19112 |
ST25R |
2 x 12 |
120 |
13 |
|
19113 |
ST50R |
2 x 25 |
200 |
26 |
|
19114 |
ST80R |
2 x 40 |
260 |
40 |
