Digital Display Dynamometer
  • Digital Display DynamometerDigital Display Dynamometer
  • Digital Display DynamometerDigital Display Dynamometer
  • Digital Display DynamometerDigital Display Dynamometer

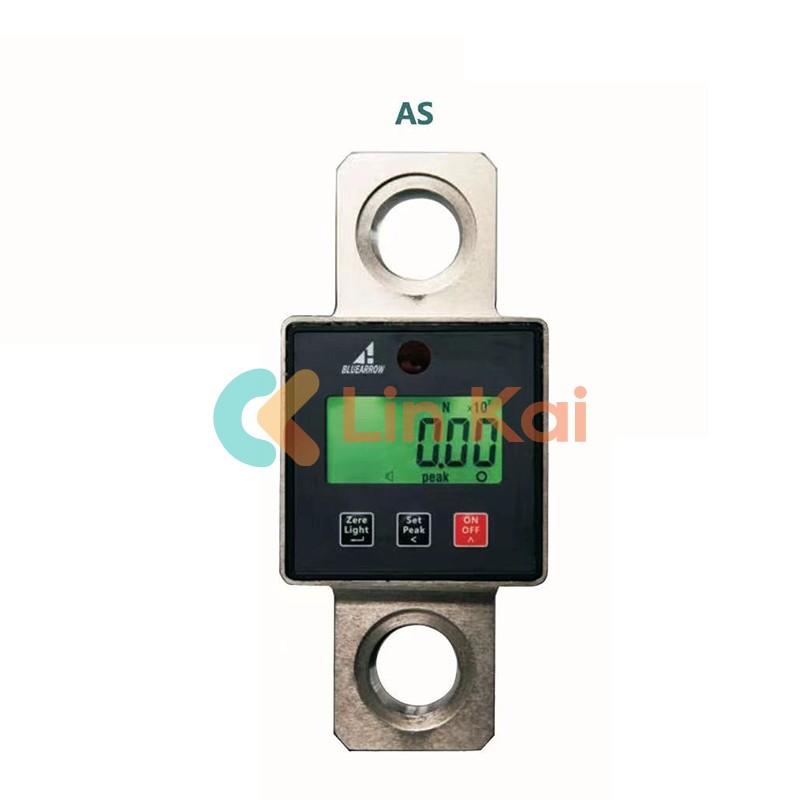

Digital Display Dynamometer

Lingkai's high-quality Digital Display Dynamometer has commonly 3T, 5T, 10T, and 15/20T models; they are a welcomed selling point. Through our technical team, now we have the wireless remote controller along with the Digital Display Dynamometer, which can let the operator stay a safe distance in the site, and the device we manufactured has the kg/lb easily changed when you use it.

Digital Display Dynamometer

Digital Display Dynamometer made in China by Lingkai is CE- and ISO-qualified. Only one manufacturer has the authorized license to make

Our Digital Display Dynamometer, also known as the dynamometer electron, and the old type figure displayed on the device, we developed the new types. With the Piii and Pii remote control displays, it is easy to operate on site.

Feature of the Digital Display Dynamometer: sturdy and portable wireless dynamometer

Alloy steel with good quality for large capacity

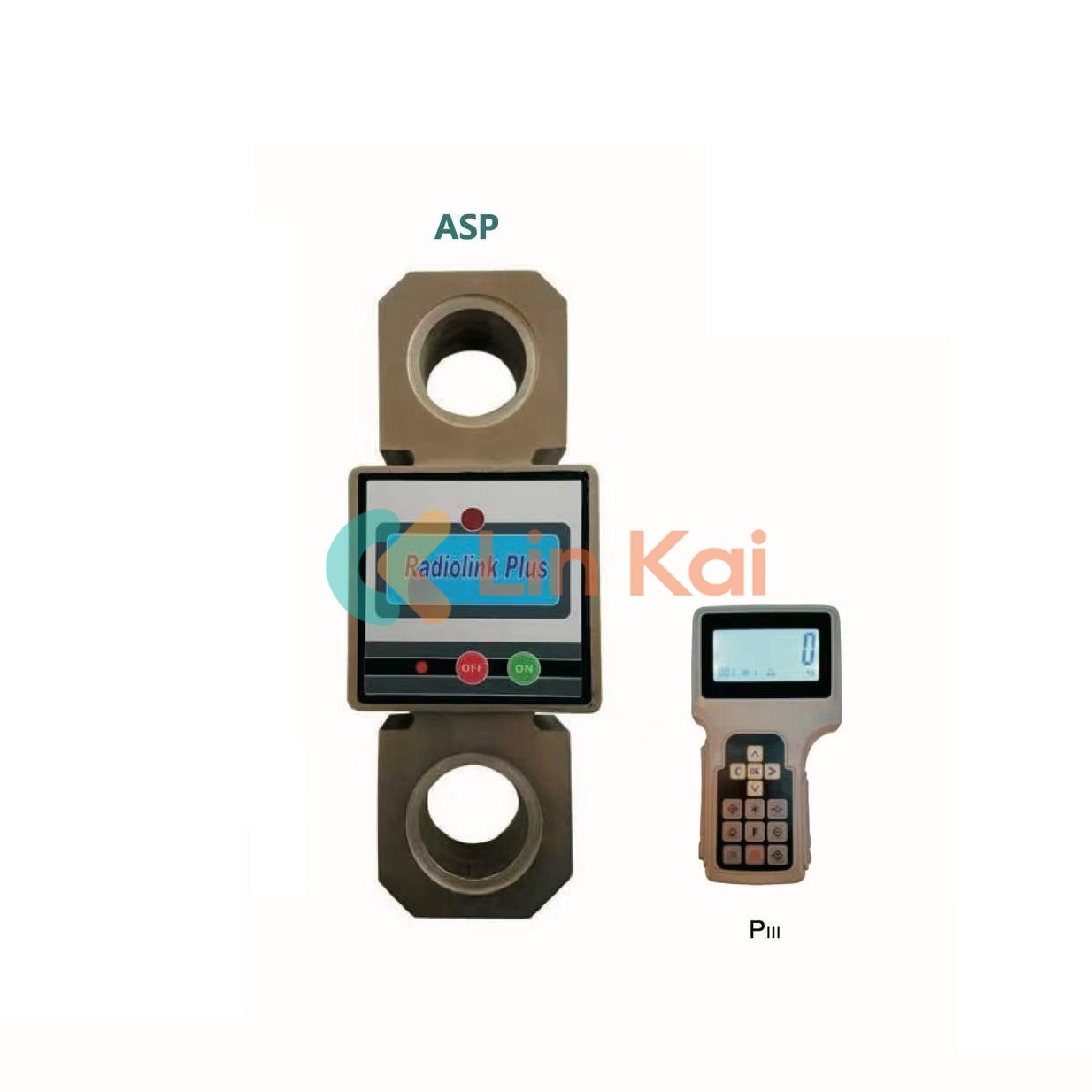

More convenient in application with hand-held Piii wireless indicator

Peak function to record the largest weight value

Low battery indication on both load cell and Piii indicator

You can choose the remote and keep yourself far away from the dangerous area.

When measuring the pulling force, it can easily be transferred to KG or LB.

This LED scream has a 6-digit, 18-mm-wide-angle display.



Digital Display Dynamometer Technical parameter

Accuracy level 1

Time to stable reading <= 8s

Maximum safe load: 150% F.S

Limited overload: 300% F.S

Overload alarm: 100% F.S +9e

Operating temperature: -10 degrees to 55 degree


Max capacity

Division

Weight KGS

0.5 T

0.2/0.1 KG

1.6

1T

0.5/0.2 KG

2.0

2T

1/0.5 KG

2.1

3T

1/0.5KG

2.3

5T

2/1KG

3.6

10T

5/2KG

6.2

15

5/2KG

9.5

20T

10/5KG

15

30T

10/5KG

21.9

50T

10/10KG

45.5
