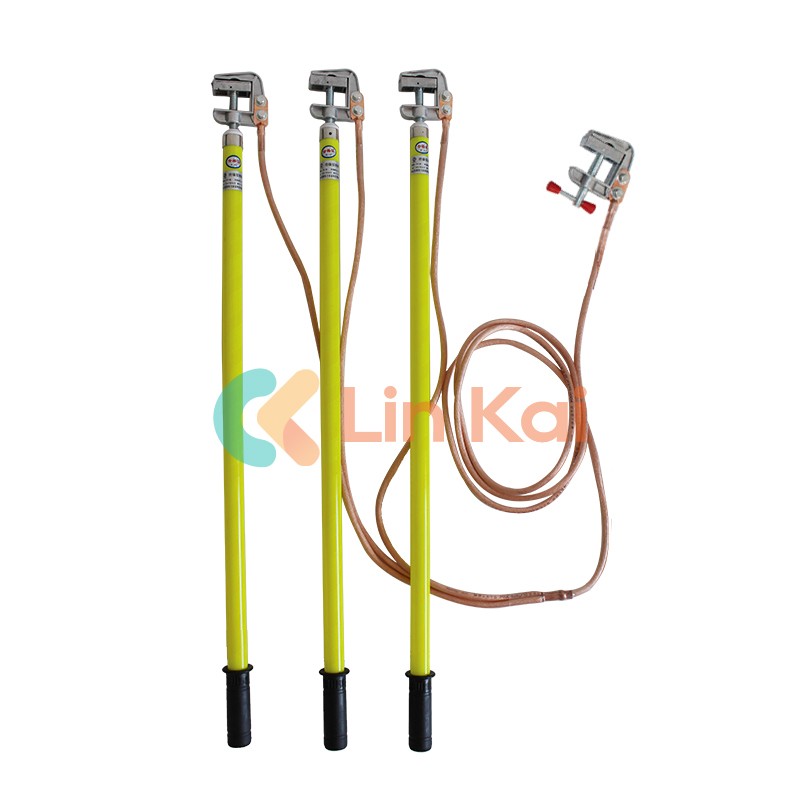

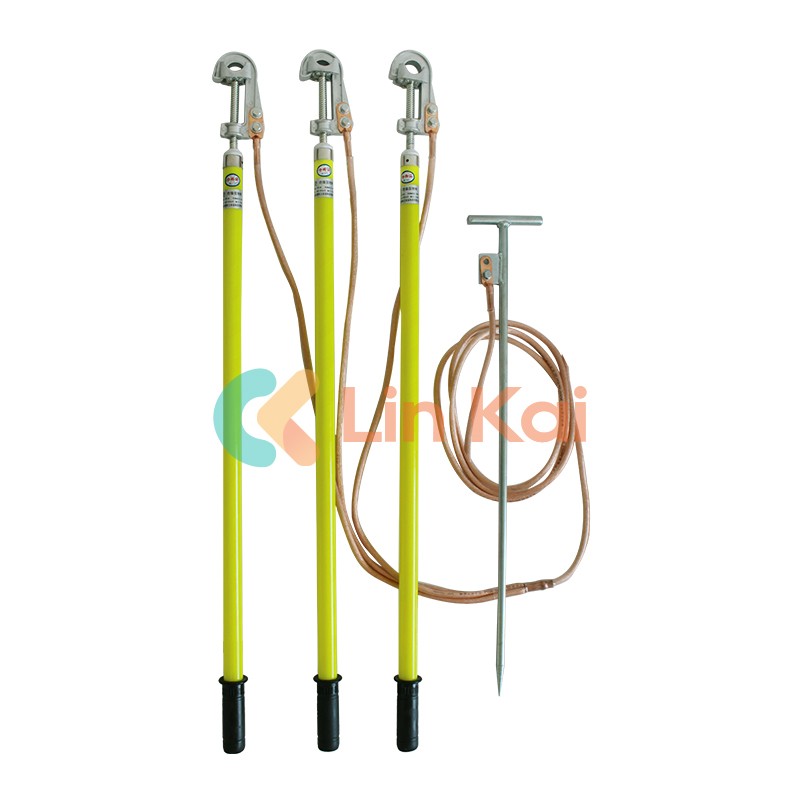

Earth Wire Safety Grounding Rod

Lingkai‘s earth wire safety grounding rod is made in China. The portable short-circuit grounding wire is based on the DL/T879-2004 standard. It is suitable for transmission lines, power plants, substation equipment, and short-circuit grounding for power outage maintenance. This Earth Wire Safety Grounding Rod is packed in a canvas bag, which is easy to carry and transport.

Earth Wire Safety Grounding Rod

Customized Earth Wire Safety Grounding Rod made by Ningbo Lingkai Manufacture, all the copper wire is from the China standard authorized plant raw material.



To buy the earth wire safety grounding rod from us, we need to know the rod length, the section, the voltage operation site, and the copper wire length, and we can also customize the open grounding end clip size.



Our earth wire safety grounding rod possesses an arc opening. It is desirable for electric transmission lines. The available length of ground bar includes 1m, 2m, 3m, and 4m. Thus, it should be clearly written in the contract. The short-circuit earth wire and grounding pole (grounding end clip) are ordered additionally.



Voltage class

Ground soft copper wire

Length of Ground Operation Rod

(mm)

(mm2)

(m)

Insulating

Handheld

Total length

10KV

25

1*3+7~1.5*3+20

700

300

1000

35KV

25

1.5*3+18

900

600

1500

68KV

25

1.5*3+20

1000

600

1600

110KV

25,35

9*3

1300

700

2000

2*3+20

220KV

25,35

9*3

2100

900

3000

3*3+25

330KV

35,50

12*3 4*3+25

3000

1100

4100

500KV

35,50

13*3~20*3

4100

1400

5500

 220-500KV  Overhead ground wire

25

1*3+7~1.5*3+20

700

300

1000

  High pressure test equipment

35,50

5*3~10*3

700

300

1000

The rated value of the copper wire per meter:

 Sectional area(mm)

10

16

25

35

50

70

95

120

  Wire diameter(mm)

4.2

5.7

7.5

8.78

11

12

16

17

 Sheath diameter(MΩ)

7.3

7.8

9.6

11.2

12.6

16.5

21

22

  Resistance value(A)

1.98

1.24

0.79

0.56

0.4

0.28

0.21

0.16

 Safety current

90

100

123

150

210

238

300

300
