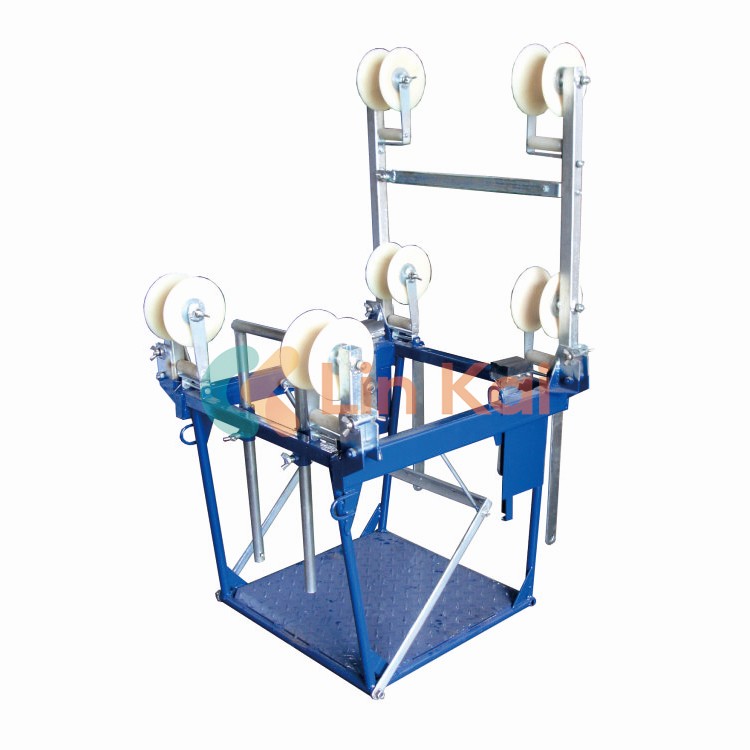

Our Four Bundle Conductor Line Cart, made in China by Lingkai, is commonly used to install the conductor at transmission line sites. And the distance between conductors should be clearly explained while an order is placed. The Four Bundle Conductor Line Cart can be customized.
|
Item Number |
Model |
Rated Load (kN) |
Maximum Through Diameter (mm) |
Distance between Conductors (mm) |
Weight (kg) |
|
17271 |
SFS1 |
1.5 |
Φ70 |
450 |
40 |
|
500 |
|||||
|
17272 |
SFS3 |
1 |
Φ40 |
400450500 |
36 |
|
450 |
38 |
||||
|
500 |
40 |
||||
|
17273 |
FCS400/450 |
1 |
Φ60 |
400~450 |
43.5 |

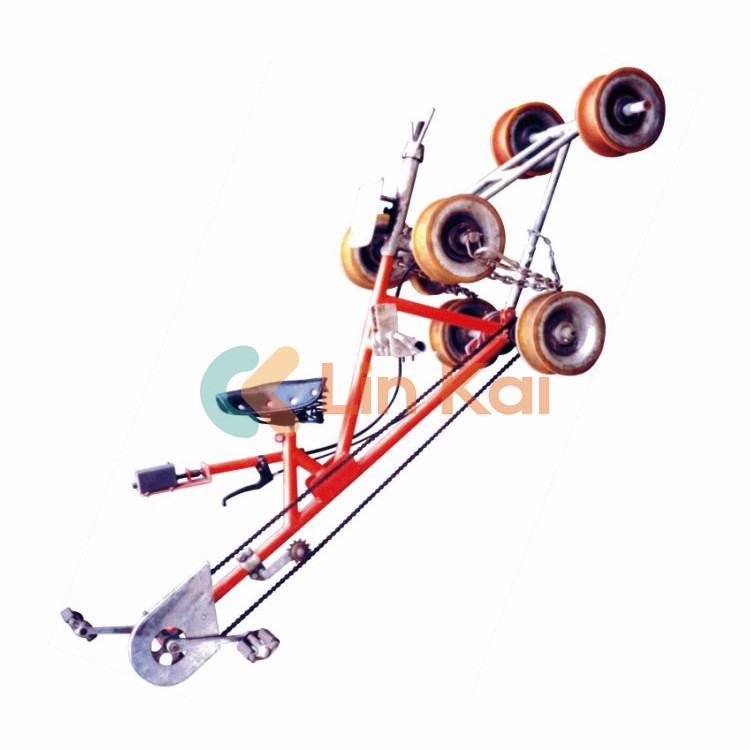

Our Four Bundle Conductor Line Cart also be named bicycles overhead line stringing tools and inspection Overhead Line Stringing Tools Trolley. Below it is the single conductor overhead line bicycles data sheet and the two bundle conductors line cart.
|
Item number |
Model |
Rated Load(KN) |
Diameter of Sheave(MM) |
Maximum throughdiameter(MM) |
Weight (KG/M) |
|
17261 |
SFD1A |
1 |
Φ55 |
Φ25 |
7 |
|
17262 |
SFD1B |
1 |
Φ80 |
Φ40 |
7 |
|
17264 |
SFD3 |
1 |
Φ160 |
Φ40 |
34 |
|
Item number |
Model |
Rated load (kN) |
Maximum through Diameter (mm) |
Conductor distance (mm) |
Weight (kg) |
Remark |
|
17251 |
SFS2 |
1 |
Φ40 |
400 |
34 |
Horizontal |
|
450 |
36 |
|||||
|
500 |
38 |
|||||
|
17253 |
SFS400 |
1 |
Φ40 |
400 |
40 |
Vertical |
|
17255 |
FC400/450S |
1 |
Φ60 |
400～450 |
34 |
Horizontal |
|
17256 |
SFS1-400 |
1.5 |
Φ70 |
400 |
38 |
Horizontal |
|
17257 |
SFS1-450 |
1.5 |
Φ70 |
450 |
40 |
Horizontal |
Uses: to mount accessories and to overhaul.Notes: should confirm the distance between conductors before proceeding production
