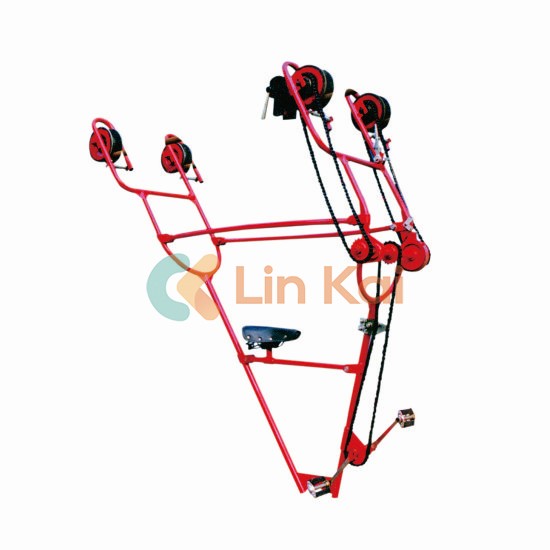

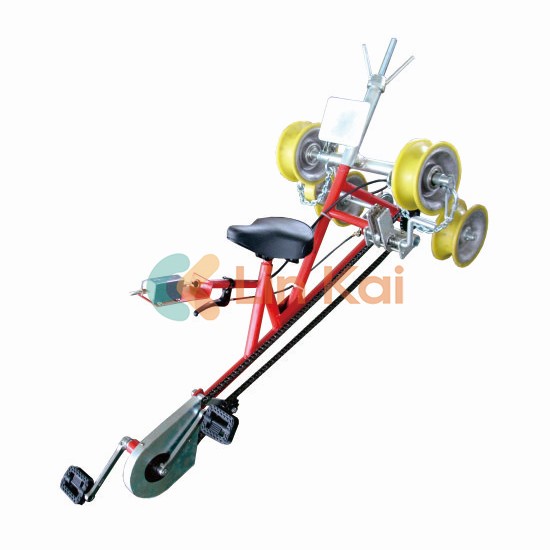

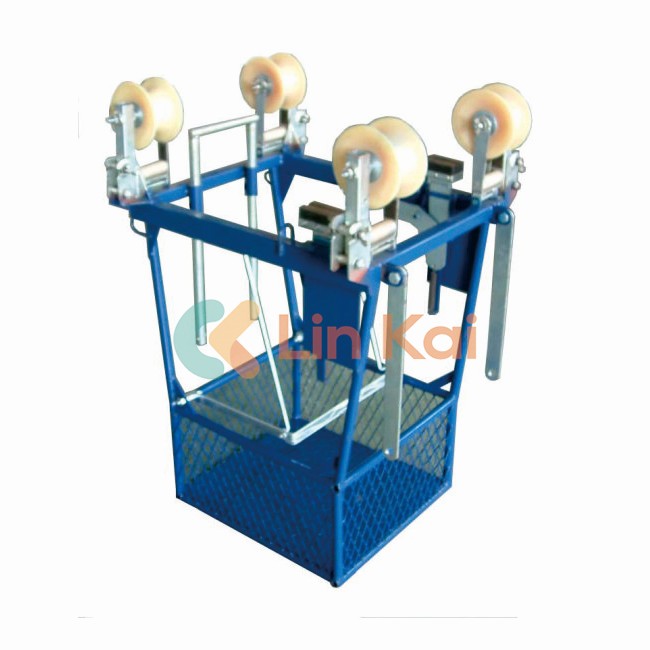

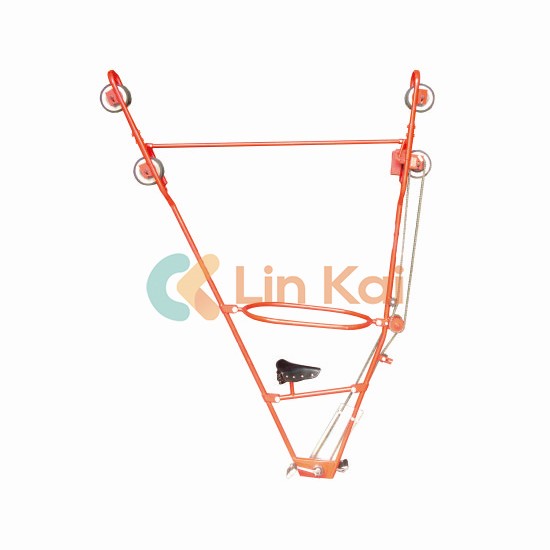

The Inspection Trolley for Two Bundle Conductors made in China by Ningbo Lingkai, is also designed with ease of use in mind. It has been fitted with large, sturdy wheels that make it easy to move on uneven surfaces and rough terrain. The trolley's handle has been designed in such a way that it provides a comfortable grip, reducing strain on the user's hands and ensuring that they can operate the trolley for longer periods without feeling tired.
Inspection Trolley for Two Bundle Conductors and overhead lines are used for installation accessories and maintenance of double split conductors. Please indicate the wire spacing when ordering.
|
Item number |
Model |
Rated load (kN) |
Maximum through Diameter (mm) |
Conductor distance (mm) |
Weight (kg) |
Remark |
|
17251 |
SFS2 |
1 |
Φ40 |
400 |
34 |
Horizontal |
|
450 |
36 |
|||||
|
500 |
38 |
|||||
|
17253 |
SFS400 |
1 |
Φ40 |
400 |
40 |
Vertical |
|
17255 |
FC400/450S |
1 |
Φ60 |
400～450 |
34 |
Horizontal |
|
17256 |
SFS1-400 |
1.5 |
Φ70 |
400 |
38 |
Horizontal |
|
17257 |
SFS1-450 |
1.5 |
Φ70 |
450 |
40 |
Horizontal |
Uses: to mount accessories and to overhaul.Notes: should confirm the distance between conductors before proceeding production
