Products

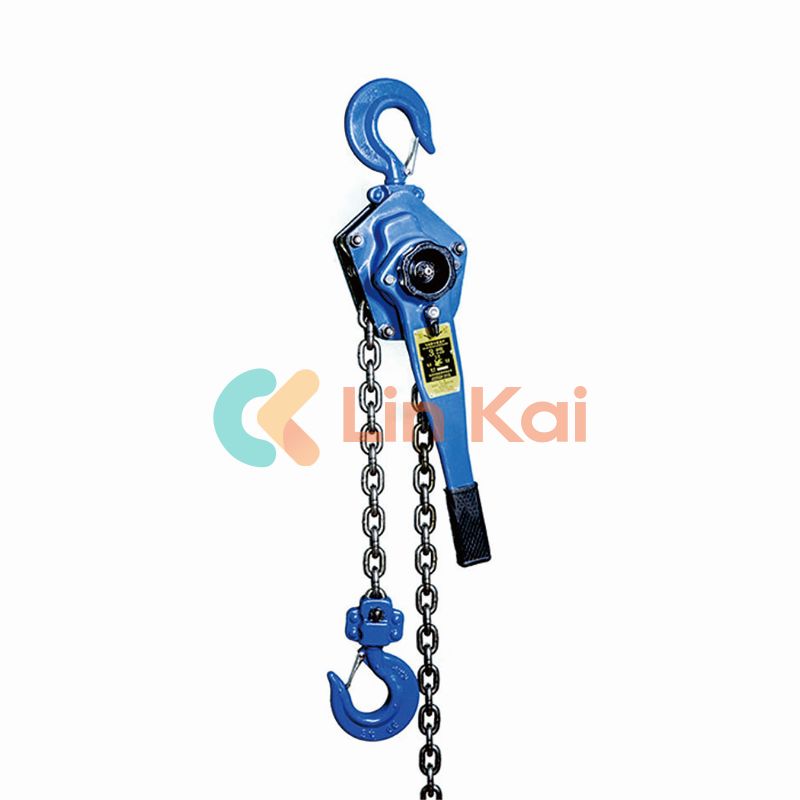

Lever Chain Hoists

Lever Chain Hoists

China Lever Chain Hoists supplier Ningbo Linkai, is focus on manufacturing the Ratchet Chain Hoist HSH model transmission tools many years, right now the Lever Chain Hoists are the most compact ratchet lever hoists on the market, they perform just like the larger models, but can be easily transported and stored in a toolbox.

Lever Chain Hoists

Fashion Lever Chain Hoists customized in the chain length has the many benefits and features during these years our tech team keeping developing in the raw material strength feed, and the structure improved.


Lever Chain Hoists one year warranty wins us a lot of clients, although said one year, but it can last two years lift time more, depending on your site application times and frequency.


Here we mainly introduce some points of our Lever Chain Hoists. 1 ) our rubber hand grip for better comfort and security. 2) forged upper and lower hooks with latches standard .3) Hardened Link-Type Alloy Steel Load Chain for Strength and Long Wear 4) Free Wheeling Feature Allows for Quick Load attachment. So on…

Lever Chain Hoists data sheet below please

Item number

14201

14211

14215

14221

14231

14241

14245

Rated load(KN)

5

7.5

10

15

30

60

90

Minimum distance between hooks(MM)

260

320

380

380

480

620

700

Standard Lifting Height(M)

1.5

Number of lines of Lifting Chain(row)

1

1

1

1

1

2

3

Weight(KG)

4.2

7.5

11.5

11.5

21

31.5

47

3m Length Of Chain

14202

14212

14216

14222

14232

14242

14246

5m Length Of Chain

14204

14214

14218

14224

14234

14244

14248

Weight of 1m chain(KG)

0.52

0.8

1.4

1.4

2.2

4.4

6.6

Hot Tags: Lever Chain Hoists, China Lever Chain Hoists, manufacturers, suppliers, Factory
