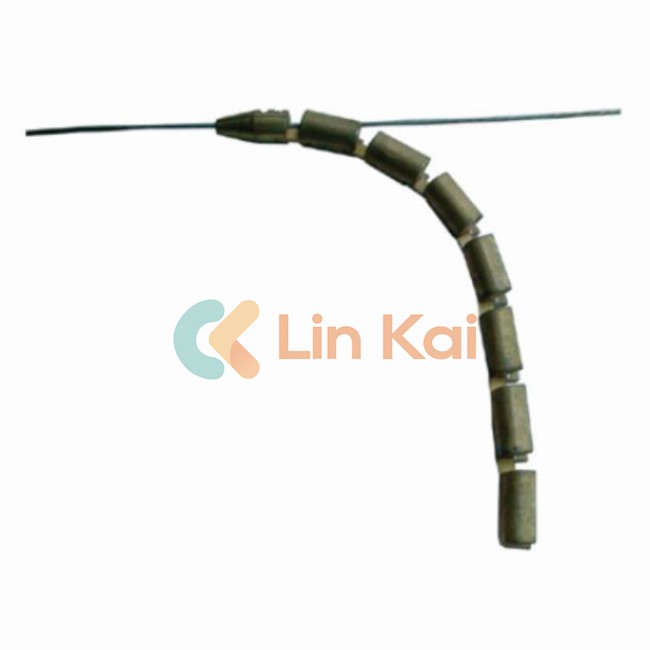

Lingkai's durable OPGW ZB Anti Twist Running Board, named OPGW Head Running Board, is used for pulling OPGW cable on the overhead transmission line. The OPGW ZB Anti Twist Running Board is composed of two pieces of steel counterweight to avoid OPGW cable twisting in stringing operations. It is used for fiber-optic cable stringing. The cable could be prevented from spiraling with this tool. It is installed directly on the head of the OPGW cable, with an interval distance of 2 meters for 2 pieces of devices. These stringing tools OPGW head boards are used for fiber optic cable stringing; they are specially designed to connect the pulling rope with fiber optic cable. The cable could be prevented from spiraling with this tool.
|
Item No. |
Model |
Rated load (KN) |
Anti-twisting torque force (N.m) |
OPGW size range (mm) |
Overall weight (kg) |
|
20118 |
ZB1 |
20 |
32 |
11-16 |
2 X 12.5 |
|
Single head Item No. |
Double head Item No. |
Model |
Cable Diameter (mm) |
Load (KN) |
|
|
With protector |
w/ protector |
Rated |
Break |
||
|
17141 |
17141S |
SLE(S)-1 |
Φ 7-11 |
10 |
30 |
|
17142 |
17142S |
SLE(S)-1.5 |
Φ 11-15 |
15 |
45 |
|
17143 |
17143S |
SLE(S)-2 |
Φ 15-18 |
20 |
60 |
|
17144 |
17144S |
SLE(S)-2.5 |
Φ 18-22 |
25 |
75 |
Mesh socket joints for OPGW ZB Anti Twist Running Board and earth wire are used to grip OPGW or GSW in line stringing operations. The mesh socket joints are made of high-strength galvanized steel wire, braided in very soft ways, and pressed with a protective aluminum sleeve and copper sleeve. The sleeve could protect the conductor and prevent the head of the OPGW from damaging the mesh socket joints.
