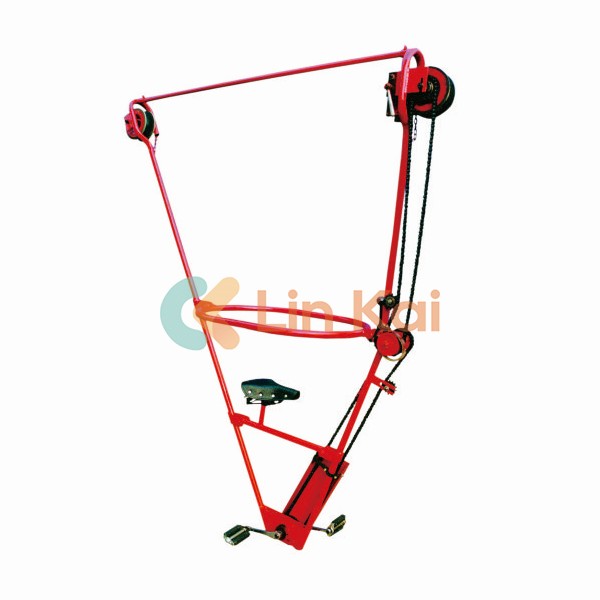

Overhead Line Bicycle for Single Conductor manufactured by Lingkai adopts an aluminum alloy pipe frame, which is lightweight, sturdy, and equipped with a braking device. It can freely control the distance and positioning of the flying car and has a structure for self-controlling the foot pedal. It is a commonly used single- and double-line flying car for maintenance personnel on the power grid.
OurOverhead Line Bicycle for Single Conductor serves to mount the conductor attachments as well as inspect the lines on the single conductor and some others. SFD1A-type products are used for telecommunication systems.
|
Item number |
Model |
Rate load (kN) |
Diameter of wheel (mm) |
Maximum through diameter (mm) |
Weight (kg) |
|
17261 |
SFD1A |
1 |
Φ55 |
Φ25 |
7 |
|
17262 |
SFD1B |
1 |
Φ80 |
Φ40 |
7 |
|
17264 |
SFD3 |
1 |
Φ160 |
Φ40 |
34 |
Specifications: To install accessories and inspection on single conductor. SFD1A is used for telecommunications cable.
|
Item number |
Model |
Rated load (kN) |
Maximum through Diameter (mm) |
Conductor distance (mm) |
Weight (kg) |
Remark |
|
17251 |
SFS2 |
1 |
Φ40 |
400 |
34 |
Horizontal |
|
450 |
36 |
|||||
|
500 |
38 |
|||||
|
17253 |
SFS400 |
1 |
Φ40 |
400 |
40 |
Vertical |
|
17255 |
FC400/450S |
1 |
Φ60 |
400～450 |
34 |
Horizontal |
|
17256 |
SFS1-400 |
1.5 |
Φ70 |
400 |
38 |
Horizontal |
|
17257 |
SFS1-450 |
1.5 |
Φ70 |
450 |
40 |
Horizontal |
Uses: to mount accessories and to overhaul.
Notes: should confirm the distance between conductors before proceeding production
