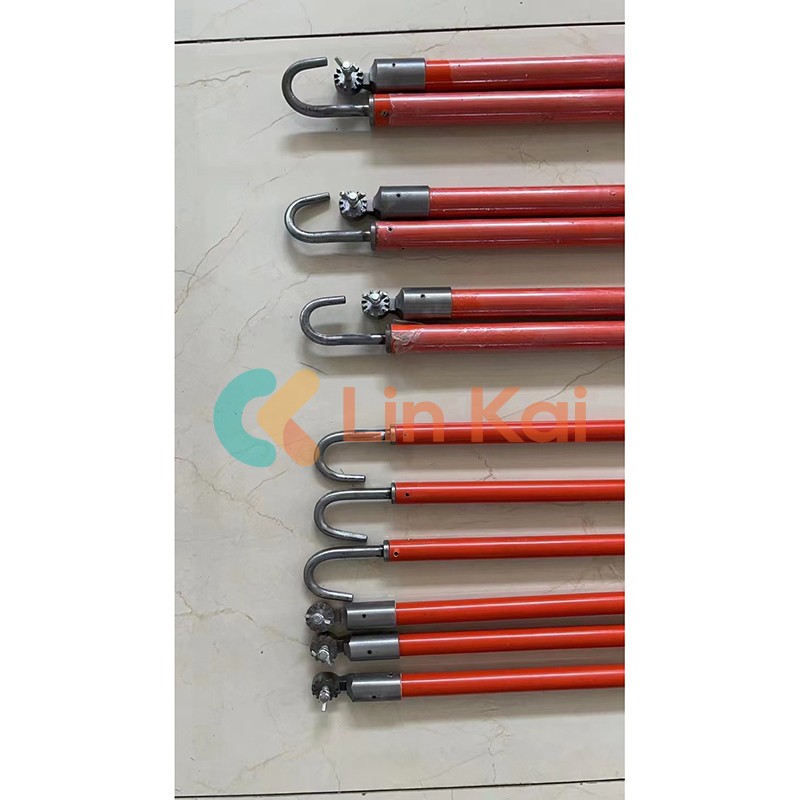

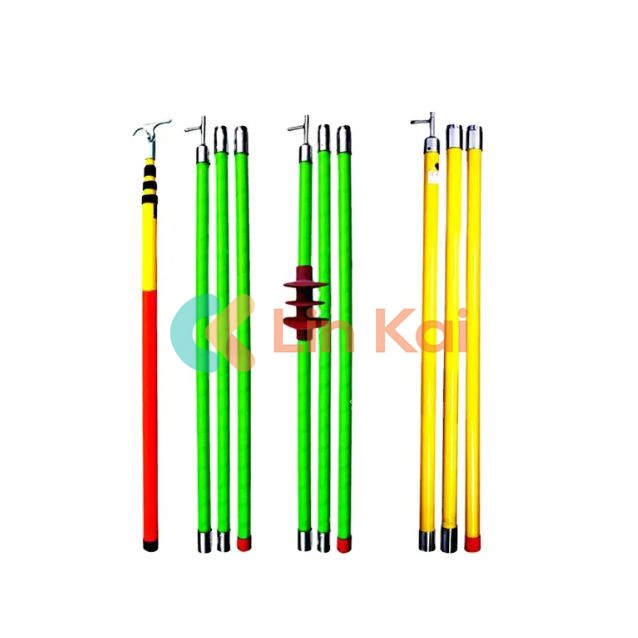

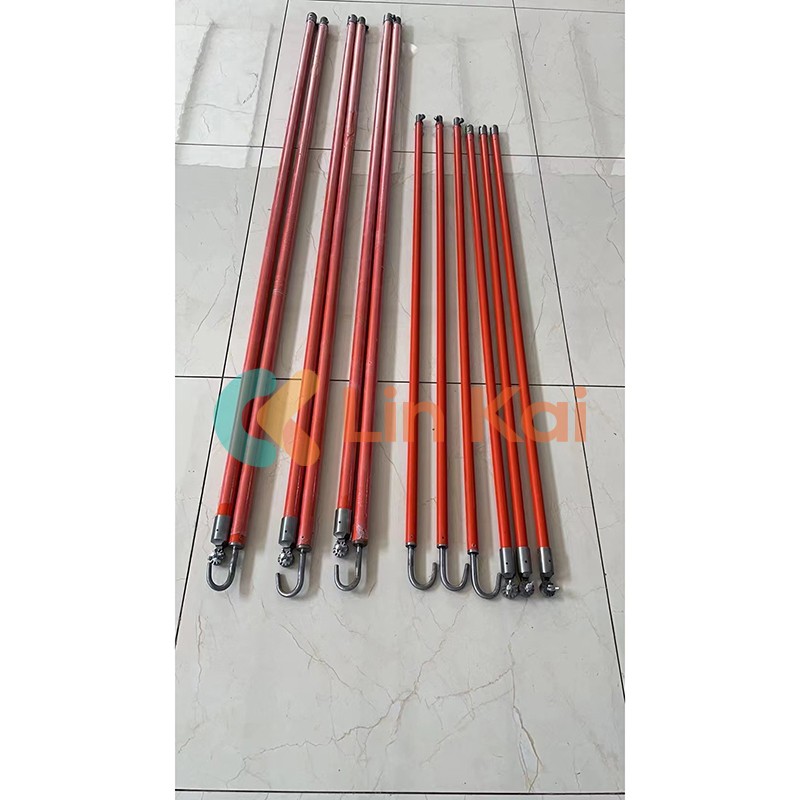

The Lingkai portable short circuit grounding pole has the Flat Clipper Jaws type and the Arc Opening type. It is desirable for the electric transmission line and suitable for the copper and aluminum row bus bar as well as the switch cabinet.
The portable short circuit grounding pole, the wire clamper, is made with aluminum alloy casting for high strength, good conductivity, and easy carry and transport. To supply the suitable best grounding lead to the client. Make sure to give us the 1. Voltage site operation 2 rod length, 3 rod section, 4 grounding end clip open size, 5 copper size, 6 copper length These can all be customized.
|
Voltage class |
Ground soft copper wire |
Length of Ground Operation Rod (mm) |
|||
|
(mm2) |
(m) |
||||
|
Insulating |
Handheld |
Total length |
|||
|
10KV |
25 |
1*3+7~1.5*3+20 |
700 |
300 |
1000 |
|
35KV |
25 |
1.5*3+18 |
900 |
600 |
1500 |
|
68KV |
25 |
1.5*3+20 |
1000 |
600 |
1600 |
|
110KV |
25,35 |
9*3 |
1300 |
700 |
2000 |
|
2*3+20 |
|||||
|
220KV |
25,35 |
9*3 |
2100 |
900 |
3000 |
|
3*3+25 |
|||||
|
330KV |
35,50 |
12*3 4*3+25 |
3000 |
1100 |
4100 |
|
500KV |
35,50 |
13*3~20*3 |
4100 |
1400 |
5500 |
|
220-500KV Overhead ground wire |
25 |
1*3+7~1.5*3+20 |
700 |
300 |
1000 |
|
High pressure test equipment |
35,50 |
5*3~10*3 |
700 |
300 |
1000 |
|
Sectional area(mm) |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
|
Wire diameter(mm) |
4.2 |
5.7 |
7.5 |
8.78 |
11 |
12 |
16 |
17 |
|
Sheath diameter(MΩ) |
7.3 |
7.8 |
9.6 |
11.2 |
12.6 |
16.5 |
21 |
22 |
|
Resistance value(A) |
1.98 |
1.24 |
0.79 |
0.56 |
0.4 |
0.28 |
0.21 |
0.16 |
|
Safety current |
90 |
100 |
123 |
150 |
210 |
238 |
300 |
300 |
This grounding pole comes with the item number of 23051, and the grounding end clip has the item number of 23055. They can be used in cooperation with the portable short circuit grounding pole.
|
Item Number |
Name |
Uses |
|
23051 |
grounding pole |
They can be used in cooperation with the portable short circuit grounding pole. |
|
23055 |
grounding end clip |
|
|
23056 |
Grounding end circle |
It can be customized |
