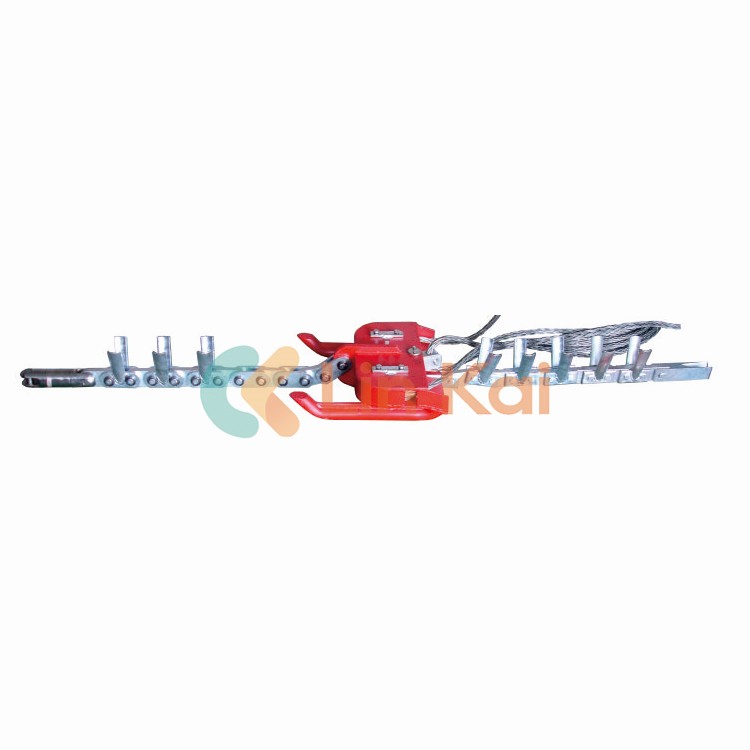

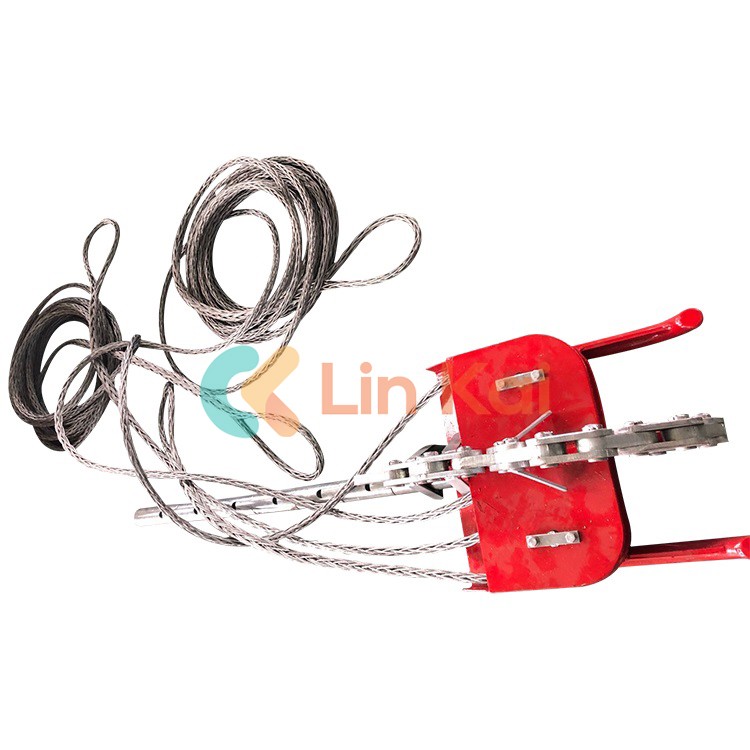

Lingkai's bulk Running Boards for Three Bundle Conductor are used for stringing three bundle conductors to connect the pilot wire rope with the conductors.
The vertical heavy links hold the running board in a horizontal position for correct entrance into the stringing blocks. The balance pulley type is normally used for two bundled conductors that are pulled from the same bull wheels of the tensioner.
|
Item number |
Model |
Rated load (kN) |
Applicable stringing block sheave width(mm) |
Weight (kg) |
Steel rope length (m) |
|
17228 |
SZ3A-10 |
100 |
100 |
114 |
1×30+1×15 |
|
17229 |
SZ3A-13 |
130 |
110 |
130 |
1×30+1×15 |
|
17230 |
SZ3A-18 |
180 |
110 |
142 |
1×30+1×15 |
Feature: It is designed to avoid torsion strain accumulation during line stringingNotes: Can be customized according to the specification of other stringing blocks.
|
Item No. |
Model |
Description |
Rated Load (KN) |
Weight (kg) |
Marks |
|
17231 |
SZ4A-13 |
Used for 660X100 stringing block |
130 |
96 |
Balance pulley structure |
|
17232 |
SZ4B-13 |
Used for 660X100 stringing block |
130 |
65 |
Conductors are stringing separately from different bull wheels |
|
17233 |
SZ4B-18 |
Used for 822X110 stringing block |
180 |
110 |
|
|
17234 |
SZ4B-25 |
Used for 822X110 stringing block |
250 |
110 |
|
|
17238 |
SZ4C-25 |
Used for 822X110 stringing block |
250 |
110 |
|
|
17239 |
SZ4B-32 |
Used for 1024X125 stringing block |
320 |
125 |
